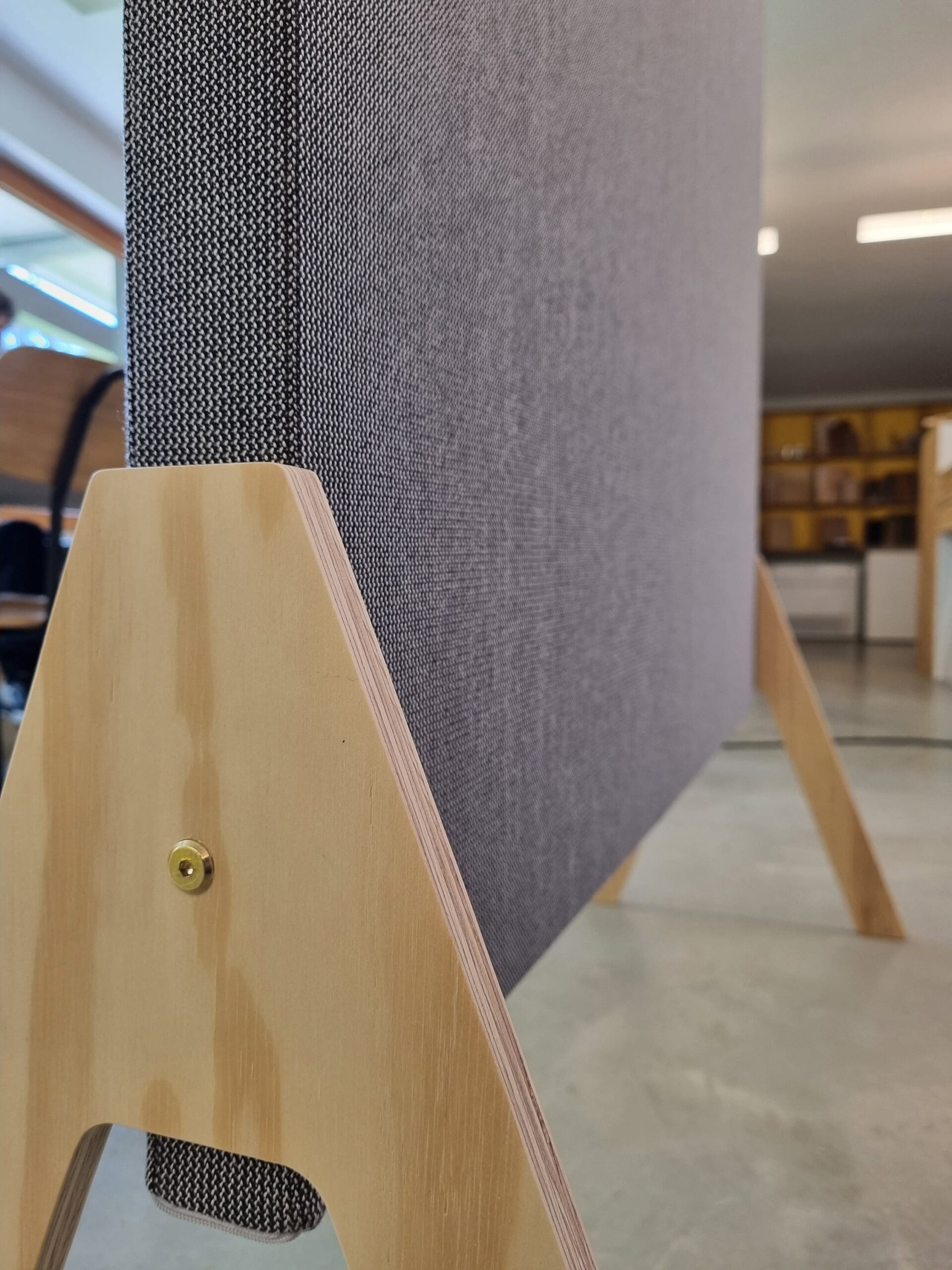

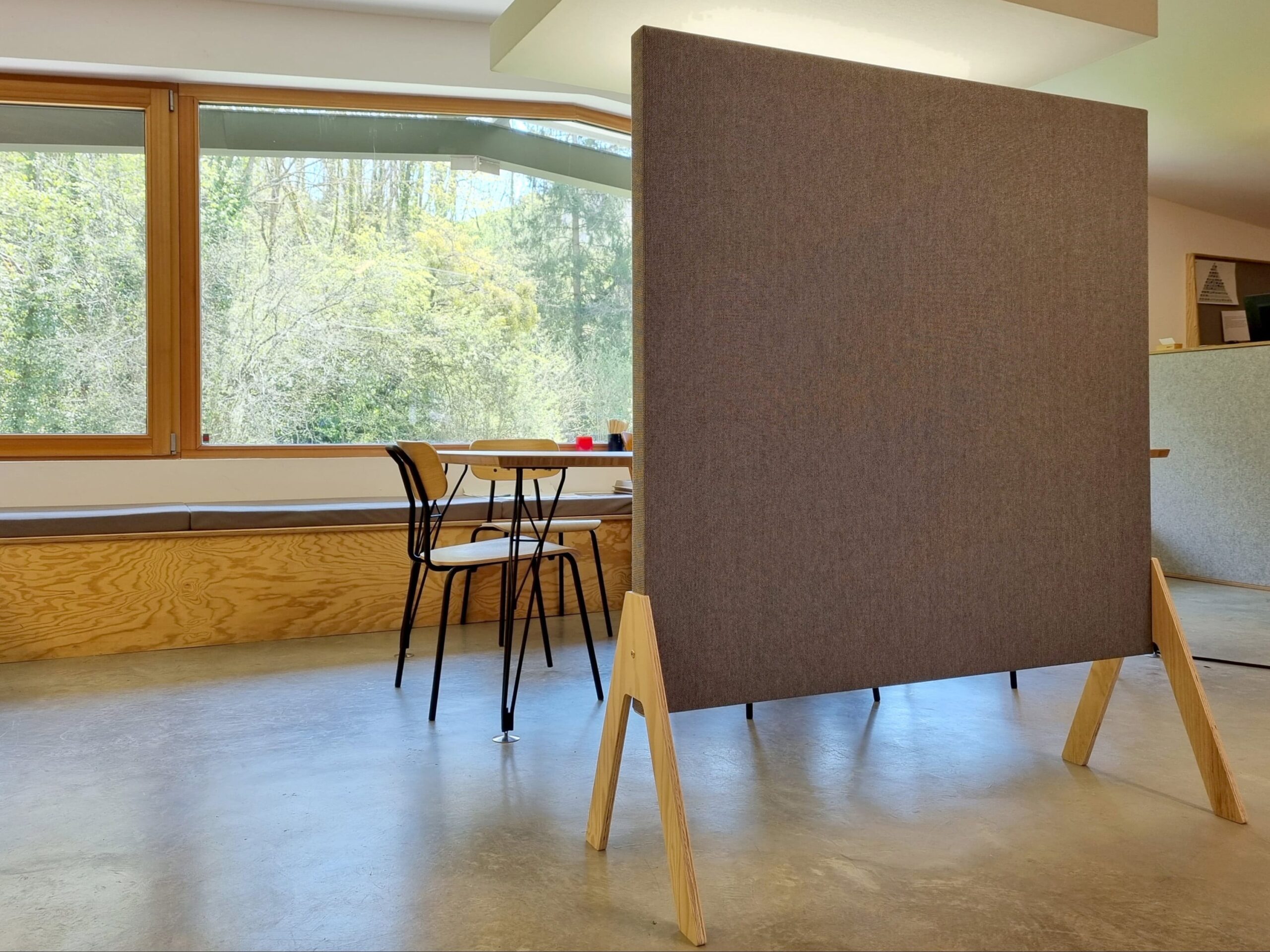

Stereo acoustic panels as free-standing partitions

Stereo acoustic panels used as free-standing partitions or fixed to tables, now have a 5-mm-thick core. This enables them to attenuate sound as well as absorb it.

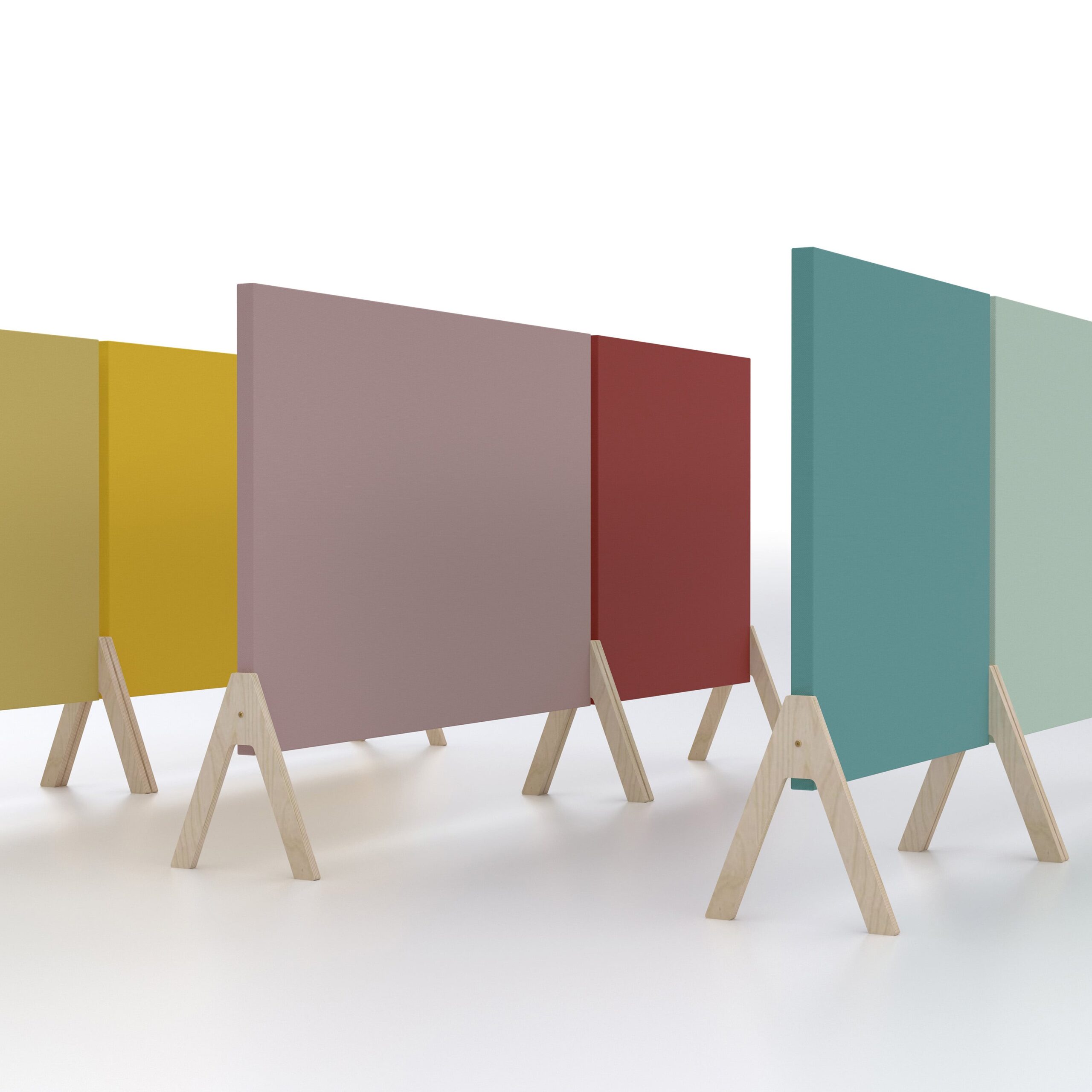

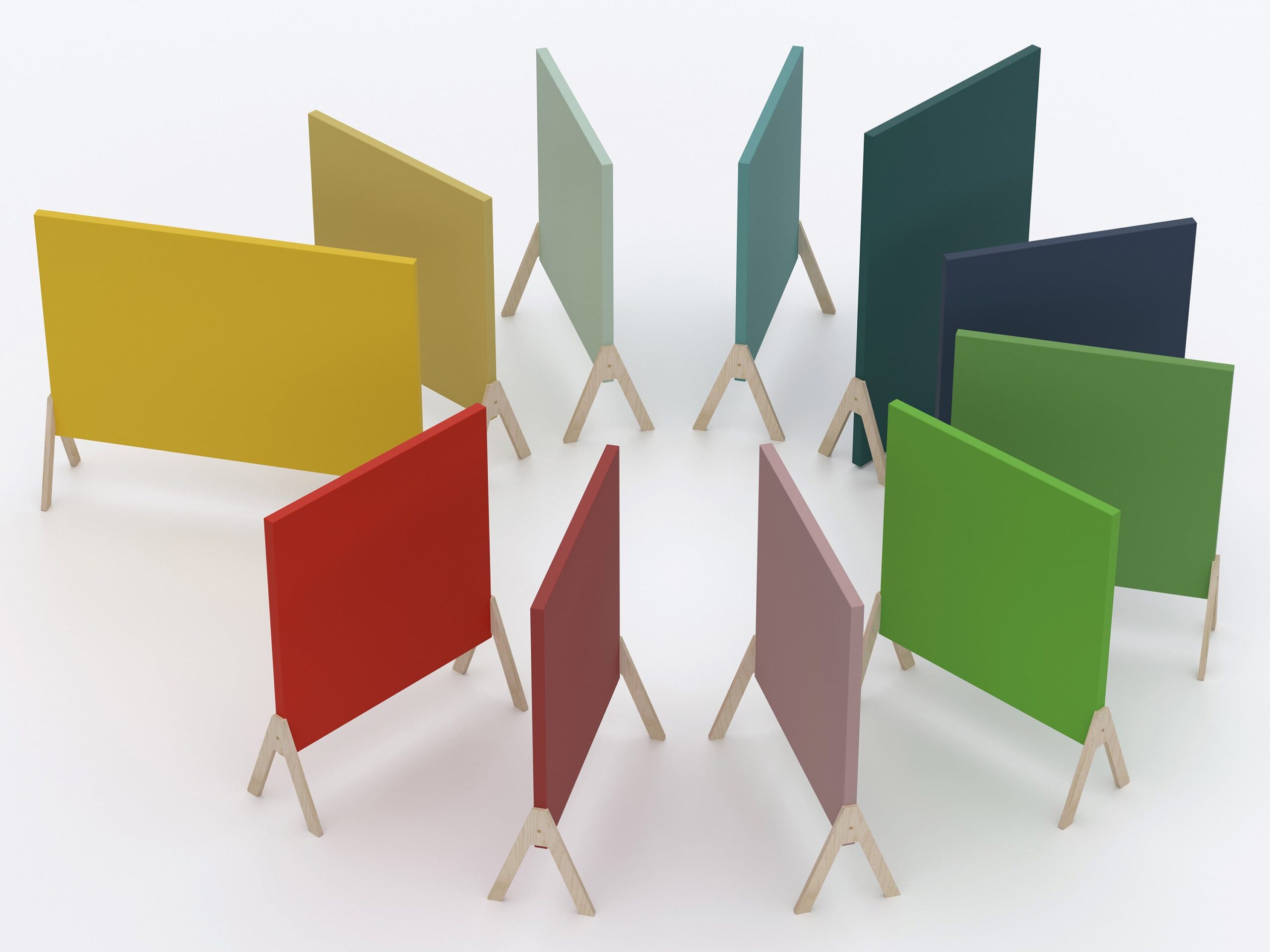

These partitions are light and modular and are available in the 30 colours of the Texaa range. Wooden legs made from locally sourced pine can be ordered for the 1,199 x 1,199 mm and 1,199 x 1,799 mm sizes.

For more information, please contact the customer representative responsible for your area.

Specification

The acoustic absorption is provided by Texaa® Stereo panels used as free-standing partitions which consist of:
• An Aluzinc© steel frame, treated against corrosion
• A 5-mm-thick MDF core with a density of 730 kg/m³
• Grey AP honeycombed foam either side of the core
• Grey or black microporous cloth cladding
• A removable and machine-washable cover made of sound-transparent, Maille Ronde Aeria fabric (330 g/m²) which is run-resistant, antistatic and dirt-repellent, and is fitted with a zip fastener to clad all surfaces of the panel





Durability of the fabric cover
Performance of Aeria 330 g/m2 run-resistant fabric
Protection against soiling:
• Hydro/Oleophobic ≥ 5 (AATCC118 and AATCC193)
• Electrostatic properties  7.1010Ω (EN 1149-1)

Acoustic performance
Equivalent absorption area A (m²) at mid-range frequencies: 2.18 m²
(Example of a free-standing Stereo panel with dimensions of 1,199 x 1,199 x 55 mm)

European classification to fire classification :
B-s1, d0 for the Aeria fabric cover
C-s2, d0 for the sound absorber

Guarantee  10 years

Environmental characteristics
VOC emissions and formaldehyde (ISO 16000)
The panels have been awarded a French A+ health label and are certified to be compliant according to the German AgBB protocol.
LEED / BREEAM (2 points):
• acoustic contribution
• very low VOC (Volatile Organic Compounds) and formaldehyde emissions.

Cleaning
Vacuum cleaning, may be dismantled and reassembled. Cover is removable and machine washable.

Colours  Choice of 30 colours.
Special colours available on request.

Stereo panel dimensions
• 1,199 x 1,199 x 55 mm
Full height with wooden legs: 1,510 mm
Weight: 16.1 kg
• 1,199 x 1,799 x 55 mm
Full height with wooden legs:
1,510 mm (horizontal) / 1,850 mm (vertical)
Weight: 22.2 kg

Dimensions of wooden legs
Weight: 0.65kg per V-shaped leg
Height: 510 mm / Width: 436 mm
