Abso
acoustic objects

Abso acoustic objects

The Abso range consists of five families of acoustic objects: Cushions, Pads, Totems, Cubes and Cones. Each of them provides a guarantee of highly effective sound absorption in view of the simplicity of the product. They are light and easy to set up, can be mobile or fixed and can be used in all types of spaces with zero or practically no installation work. Their covers, made of our run-resistant Aeria fabric, make them robust and attractive.

run-resistant
water repellent and dust-proof
fire-resistant
10-year guarantee

Abso Cushions are available in round, square and rectangular shapes that can be combined to very pleasing effect in empty spaces and below ceilings.

Their rounded contours create an impression of softness in space.

Abso Cushions are made of sound-absorbing foam and an Aeria fabric cover stretched over a metal hoop. Their 95-mm thickness makes them very effective.

Round Abso Cushions suspended from the ceiling in a renovation project that combines legacy features with contemporary ones.

Used in numbers, Abso acoustic Cushions play a role in organising this volume, giving it a sequential feel.

Abso Ceiling Pads are specially designed for standard dropped ceilings with “T” runners. They are clipped into the grid to create quiet areas below them, for example above workstations.

They are an addition to a traditional modular ceiling and with their flat or bevelled shape can be combined to create interest in a space

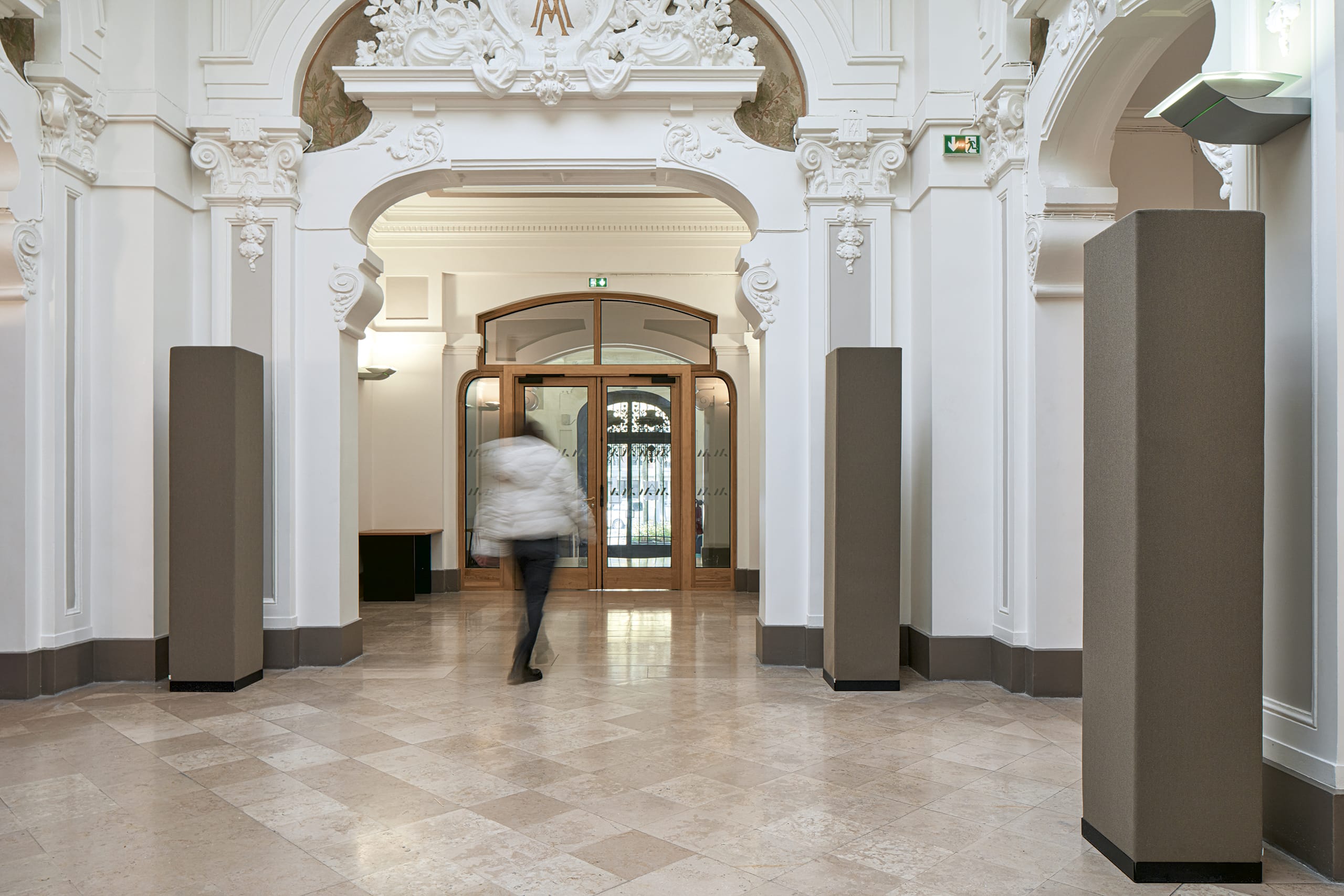

Abso Totems are embellishing and very sound-absorbent. They also contribute to organising space by signposting quiet areas.

Abso Totems are super-light, require no installation and can very easily be moved.

When suspended, their vertical shape punctuates space.

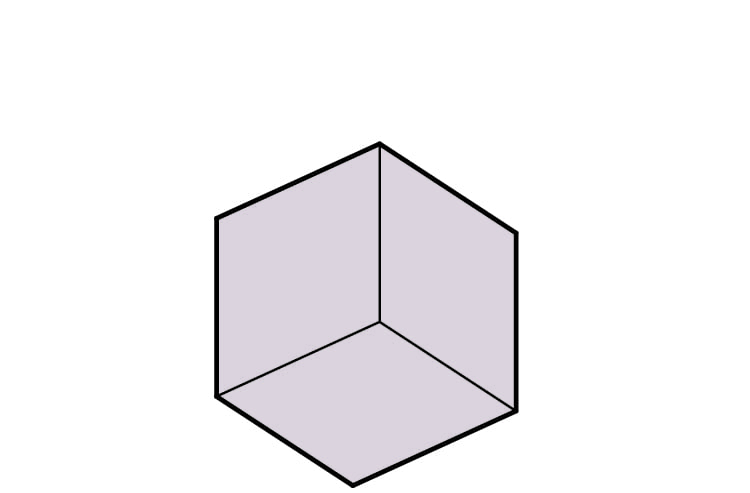

Abso Cubes are much lighter than they appear and are easily installed in space.

Their pure shape can be used to devise free combinations that are highly sound-absorbent.

They can be suspended, either by one corner or horizontally.

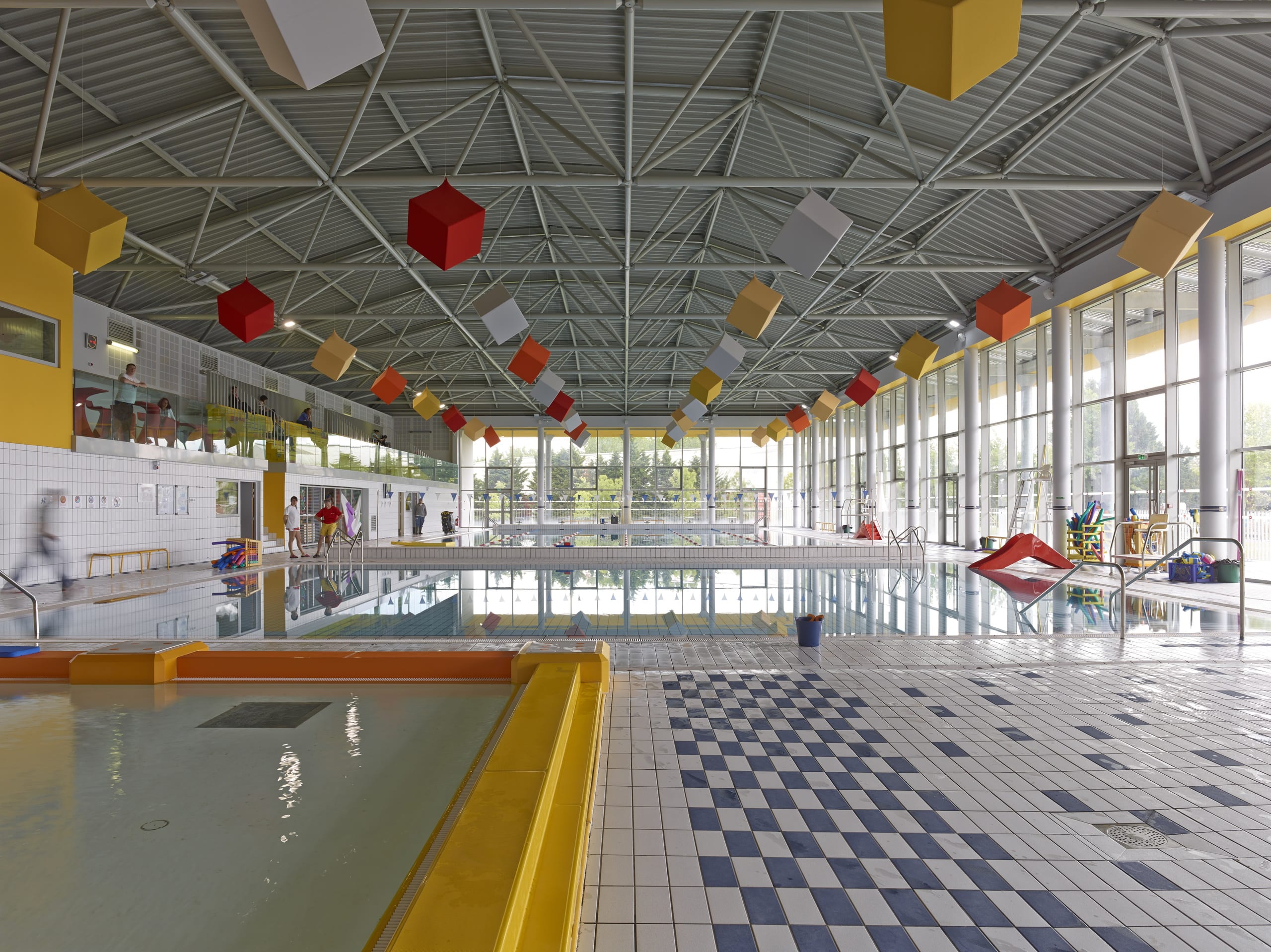

In large volumes and when there is no wall area available, Abso Cubes suspended from the ceiling are a good solution.

Abso Cones are a fun way to add structure to spaces, either with a precise layout or grouped in bouquets. They add interest to volumes and suit all types of ceilings.

Suspended on a single vertical cable, they are a valuable complement in situations where reverberation is sometimes tricky to reduce.

Composition and installation

Abso cushions are made of sound-absorbent foam and a metal hoop.

The metal hoop lends rigidity to the shape and provides a support over which the Aeria cover is stretched.

Covers are put on by hand so that the seams are perfectly positioned.

Various ingenious fixing systems are available depending on how the shapes are to be installed: here a Cube is suspended horizontally.

Characteristics

CUSHIONS

Composition

  • Grey AP cellular foam
  • Powder-coated steel hoop
  • Cover made of sound-transparent Aeria fabric

Acoustic performance

Equivalent absorption area A (m²) at mid-range frequencies

  • 1,250 square: 2.63 m²
  • 625 rectangle: 1.51 m²
  • 1,800 rectangle: 3.65 m²
  • 800 round : 1,09 m²
  • 1,000 round: 1.55 m²
  • 1,250 round: 2.18 m²

Reaction to fire classification

  • European classification :
    • B-s1, d0 for the Aeria fabric cover
    • C-s2, d0 for the sound absorber
  • United States – ASTM
    • Class A

Colours

Select from the 30 colours in the round knit (MR) palette available for the Abso range. Special colours available on request.

Special solutions

  • Suspended under horizontal cables

Environmental characteristics

  • Abso cushions meet the requirements specified in the HQE, LEED and BREEAM (4 points) reference documents and methods, based on:
    • their acoustic contribution
    • their very low emissions of VOC and formaldehyde
    • certified EPD (15804)
  • All Texaa products qualify for French “A+” health labelling and are classed as “conforming” after assessment using the German AgBB protocol
  • Impact on climate change: 16.7 kg CO2 eq /m²

CEILING PADS

Composition

  • Grey AP cellular foam
  • Cover made of sound-transparent Aeria fabric
  • Steel part for fitting purposes

Acoustic performance

Equivalent absorption area A (m²) at mid-range frequencies: 0.76 m²
Absorption coefficient αw = 1 for Pads installed in clusters

Reaction to fire classification

  • European classification :
    • B-s1, d0 for the Aeria fabric cover
    • C-s2, d0 for the sound absorber
  • United States – ASTM
    • Class A

Colours

Select from the 30 colours in the round knit (MR) palette available for the Abso range. Special colours available on request.

Environmental characteristics

  • Abso ceilings pads meet the requirements specified in the HQE, LEED and BREEAM (2 points) reference documents and methods, based on:
    • their acoustic contribution
    • their very low emissions of VOC and formaldehyde
  • All Texaa products qualify for French “A+” health labelling and are classed as “conforming” after assessment using the German AgBB protocol

TOTEMS

Composition

  • Grey AP cellular foam
  • Cover made of sound-transparent Aeria fabric
  • Powder-coated steel tray or metal hoop

Acoustic performance

Equivalent absorption area A (m²) at mid-range frequencies

  • Free-standing Totems: 3.22 m²
  • Suspended Totem: 3.55 m²

Reaction to fire classification

  • European classification :
    • B-s1, d0 for the Aeria fabric cover
    • C-s2, d0 for the sound absorber
  • United States – ASTM
    • Class A

Colours

Choose from the 30 colours of the Maille Ronde (MR) range. Special colours available on request.

Environmental characteristics

  • Abso totems meet the requirements specified in the HQE, LEED and BREEAM (2 points) reference documents and methods, based on:
    • their acoustic contribution
    • their very low emissions of VOC and formaldehyde
  • All Texaa products qualify for French “A+” health labelling and are classed as “conforming” after assessment using the German AgBB protocol

CUBES

Composition

  • Grey AP cellular foam
  • Cover made of sound-transparent Aeria fabric
  • Powder-coated steel hoop (if required)

Acoustic performance

Equivalent absorption area A (m²) at mid-range frequencies

  • 380 Cube: 1.00 m²
  • 500 Cube: 1.65 m²
  • 750 Cube: 3.82 m²

Reaction to fire classification

  • European classification :
    • B-s1, d0 for the Aeria fabric cover
    • C-s2, d0 for the sound absorber
  • United States – ASTM
    • Class A

Colours

Choose from the 30 colours of the Maille Ronde (MR) range. Special colours available on request.

Environmental characteristics

  • Abso cubes meet the requirements specified in the HQE, LEED and BREEAM (2 points) reference documents and methods, based on:
    • their acoustic contribution
    • their very low emissions of VOC and formaldehyde
  • All Texaa products qualify for French “A+” health labelling and are classed as “conforming” after assessment using the German AgBB protocol

CONES

Composition

  • Grey AP cellular foam
  • Cover made of sound-transparent Aeria fabric
  • Steel hoop

Acoustic performance

Equivalent absorption area A (m²) at mid-range frequencies

  • 500 Cone: 0.55 m²

Reaction to fire classification

  • European classification :
    • B-s1, d0 for the Aeria fabric cover
    • C-s2, d0 for the sound absorber
  • United States – ASTM
    • Class A

Colours

Choose from the 30 colours of the Maille Ronde (MR) range. Special colours available on request.

Environmental characteristics

  • Abso cones meet the requirements specified in the HQE, LEED and BREEAM (2 points) reference documents and methods, based on:
    • their acoustic contribution
    • their very low emissions of VOC and formaldehyde
  • All Texaa products qualify for French “A+” health labelling and are classed as “conforming” after assessment using the German AgBB protocol

COMMON FEATURES

Durability of the aeria fabric cover

  • Run-resistant
  • 330 g/m²
  • Protection against soiling:
    • Hydro/Oleophobic ≥ 5 (AATCC118 et AATCC193)
    • Electrostatic properties 7.1010 Ω (EN 1149-1)

Cleaning

Vacuum cleaning, may be taken apart and refitted

Garantee 10 ans

Sizes

1800 rectangle

1,800 x 1,250 x 95 mm

1250 square

1,250 x 1,250 x 95 mm

625 rectangle

1,250 x 625 x 95 mm

1250 round

1,250 x 95 mm

1000 round

1,000 x 95 mm

800 round

800 x 95 mm

totem

2,000 x 380 x 380 mm

750 Cube

750 x 750 x 750 mm

500 Cube

500 x 500 x 500 mm

380 Cube

380 x 380 x 380 mm

500 Cone

500 x 290 / 165 mm

576 Pad (83 mm thick)

For voids of 576 x 576 mm in T24 600 x 600 grids.

585 Pad (70 mm thick)

For voids of 585 x 585 mm in T15 600 x 600 and T24 610 x 610 grids.

601 Pad (70 mm thick)

For voids of 601 x 601 mm in T24 625 x 625 grids.

576 slanted Pad (50 to 116 mm thick)

For voids of 576 x 576 mm in T24 600 x 600 grids.

Colours available

Vieux rose
MR330
Rose rubis
MR320
Brique
MR620
Rouge
MR470
Bleu menthe
MR370
Bleu étang
MR360
Océan
MR340
Bleu nocturne
MR310
Lichen
MR660
Vert cactus
MR550
Prairie
MR480
Fougère
MR650
Vert beige
MR670
Cumin
MR920
Moutarde
MR580
Ivoire
MR940
Beige
MR930
Taupe
MR680
Nacre
MR640
Silex
MR950
Ciment
MR700
Quartz
MR300
Gris pierre
MR350
Granit
MR980
Graphite
MR520
Craie
MR630
Chiné naturel
MR130
Chiné brun
MR120
Chiné noir
MR150
Chiné graphique
MR140
Specify and install
Specification

Sound absorption will be supplemented by Abso acoustic Cushions for ceilings of public buildings by Texaa®

Composition

  • Removable cover made of Aeria Maille Ronde (330 g/m²) sound-transparent fabric that is run-resistant, soil-resistant and machine washable
  • Grey AP cellular foam
  • Powder-coated steel hoop



TECHNICAL SPECIFICATION

Reaction to fire classification

  • European classification :
    • B-s1, d0 for the Aeria fabric cover
    • C-s2, d0 for the sound absorber
  • United States – ASTM
    • Class A

Acoustic performance

Equivalent absorption area A(m²) at mid-range frequencies:
1,250 Square: 2.63 m²
625 Rectangle: 1.51 m²
1,800 Rectangle: 3.65 m²
800 Round : 1,09 m²
1,000 Round: 1.55 m²
1,250 Round: 2.18 m²

Environmental characteristics

Very low emissions of VOC and formaldehyde (A+)
Slight impact on climate change: 16.7 kg CO2 eq /m²

Dimensions

1,250 Square: 1,250 x 1,250 x 95 mm
625 Rectangle: 625 x 1,250 x 95 mm
1,800 Rectangle: 1,800 x 1,250 x 95 mm
800 Round: 800 x 95 mm
1,000 Round: 1,000 x 95 mm
1,250 Round: 1,250 x 95 mm

Colours

Select from the 30 colours in the round knit (MR) palette available for the Abso range. Special colours available on request.



FITTING

Suspended individually on vertical cables.

Each Abso Cushion is suspended horizontally from the ceiling on 4 vertical cables (3 cables for 1,000 Round and 1,250 Round) made of galvanised steel (diameter 1 mm, length 1,000 mm), fitted with a small cylindrical cover and adjustable latch-eye hooks.

Suspended from horizontal cables

Each Abso Cushion is suspended from 2 horizontal cables (not supplied) on 4 vertical cables (3 cables for 1,000 Round and 1,250 Round) made of galvanised steel (diameter 1 mm, length 1,000 mm), fitted with a stainless steel cross-shaped cable clamp and adjustable latch-eye hooks.

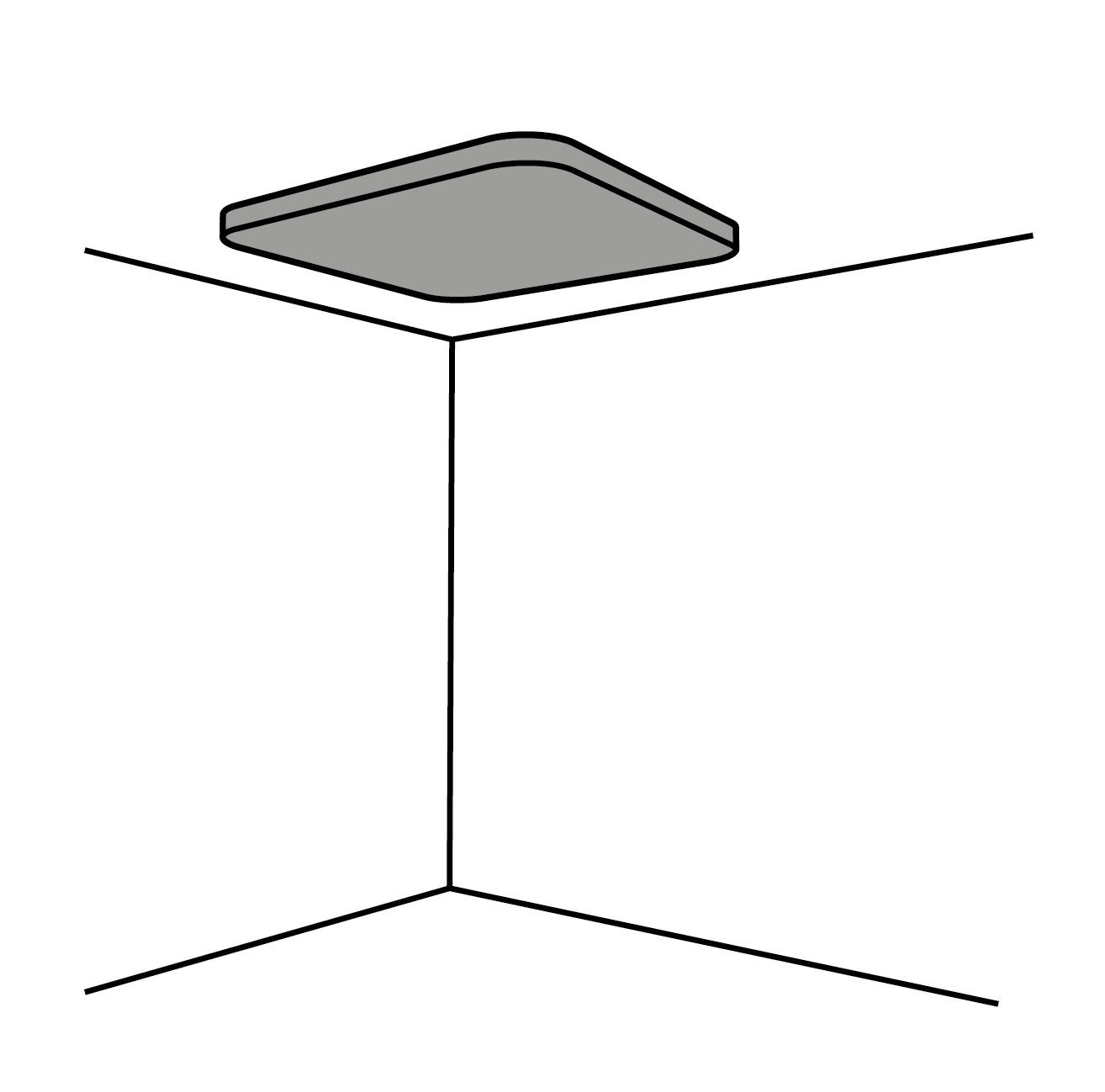

square suspended separately using vertical cables
rectangle suspended separately using vertical cables

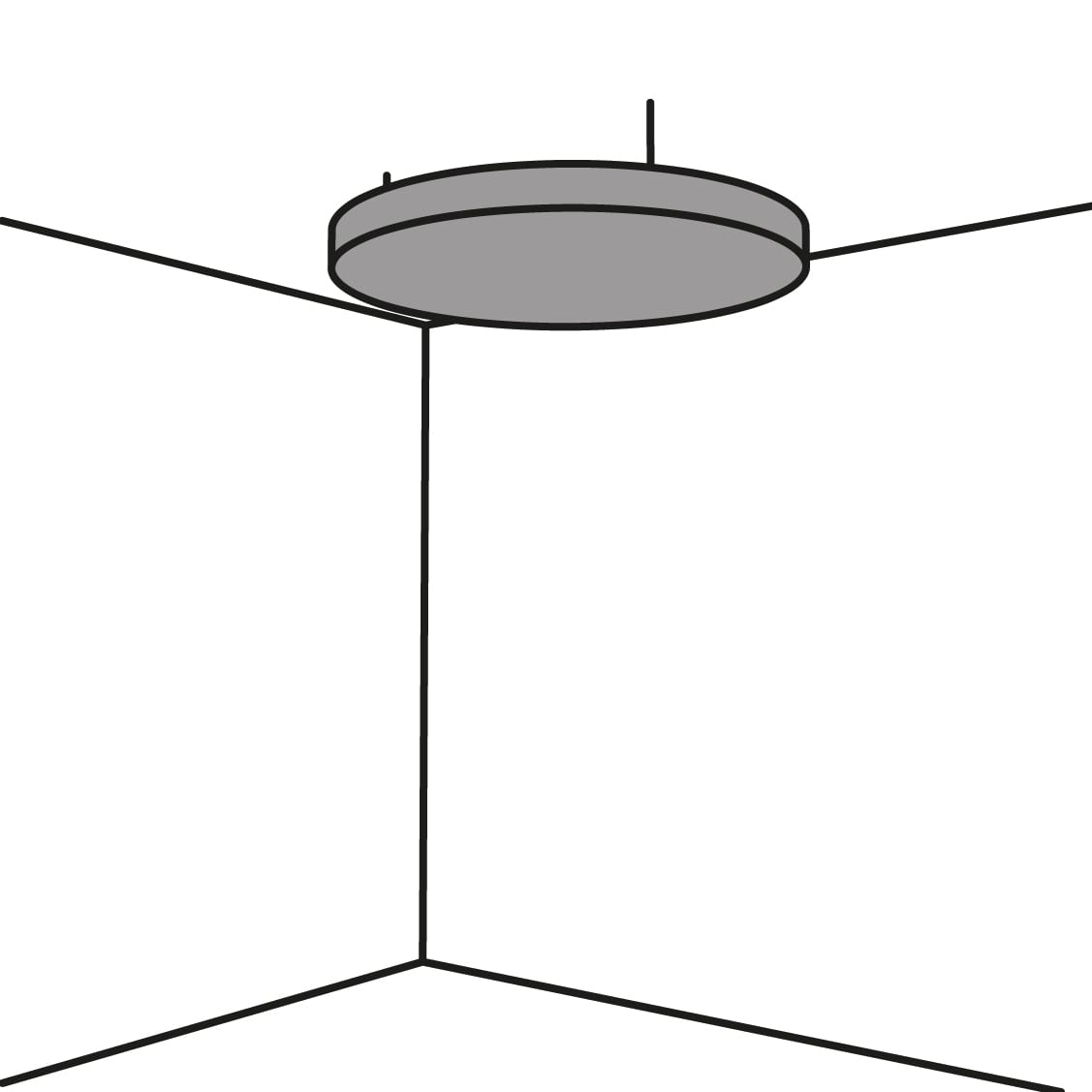

round suspended separately using vertical cables
square suspended under horizontal cables
round suspended under horizontal cables
Specification

Sound absorption will be supplemented by Abso acoustic ceiling pads for public buildings by Texaa®

Composition

  • Cover made of Aeria Maille Ronde (330 g/m²) sound-transparent fabric that is run-resistant and soil-resistant
  • Grey AP cellular foam

TECHNICAL SPECIFICATION

Reaction to fire classification

  • European classification :
    • B-s1, d0 for the Aeria fabric cover
    • C-s2, d0 for the sound absorber
  • United States – ASTM
    • Class A

Acoustic performance

Equivalent absorption area A(m²) at mid-range frequencies: 0.76 m²

Environmental characteristics

Very low emissions of VOC and formaldehyde (A+)
Slight impact on climate change: 16.7 kg CO2 eq /m²

Dimensions

576 Pad (83 mm thick) For voids of 576 x 576 mm in T24 600 x 600 grids.

585 Pad (70 mm thick) For voids of 585 x 585 mm in T15 600 x 600 and T24 610 x 610 grids.

601 Pad (70 mm thick) For voids of 601 x 601 mm in T24 625 x 625 grids.

576 slanted Pad (50 to 116 mm thick) For voids of 576 x 576 mm in T24 600 x 600 grids.

Colours

Select from the 30 colours in the round knit (MR) palette available for the Abso range. Special colours available on request.

Fitting

Abso Ceiling Pads are inserted within the “T“-runners of the dropped ceiling grid.

Inserted into a dropped ceiling grid

Suspended Cubes, Cones and Totems

Specification

Sound absorption will be supplemented bysuspended Abso acoustic Cubes [Cones] [Totems] by Texaa

Composition

  • Removable cover made of Aeria Maille Ronde (330 g/m²) sound-transparent fabric that is run-resistant, soil-resistant and machine washable
  • Grey AP cellular foam



TECHNICAL SPECIFICATION

Reaction to fire classification

  • European classification :
    • B-s1, d0 for the Aeria fabric cover
    • C-s2, d0 for the sound absorber
  • United States – ASTM
    • Class A

Acoustic performance

Equivalent absorption area A(m²) at mid-range frequencies:
380 Cube: 1.00 m²
500 Cube: 1.65 m²
750 Cube: 3.82 m²
500 Cone: 0.55 m²
Totem: 3.55 m²

Environmental characteristics

Very low emissions of VOC and formaldehyde (A+)
Slight impact on climate change: 16.7 kg CO2 eq /m²

Dimensions

380 Cube: 380 x 380 x 380 mm
500 Cube: 500 x 500 x 500 mm
750 Cube: 750 x 750 x 750 mm
500 Cone: 500 x 290 x 165 mm
Totem: 2000 x 380 x 380 mm

Colours

A choice of 30 colours in the Aeria Maille Ronde range. Special colours by request.

Fitting

Cubes are suspended using a powder-coated steel hoop, when horizontal, or a textile loop and galvanised steel cables (diameter 1 mm, length 1,000 mm), fitted with a small cylindrical cover and an adjustable latch-eye hook.
500 Cones are suspended using a ring and galvanised steel cables (diameter 1 mm, length 1,000 mm), fitted with a small cylindrical cover and an adjustable latch-eye hook.
Totems are suspended using a steel hoop and galvanised steel cables (diameter 1 mm, length 1,000 mm), fitted with a small cylindrical cover and an adjustable latch-eye hook.

Ceiling-hung Cube
Ceiling-hung Cubes
Ceiling-hung 500-mm Cone
Ceiling-hung 1,900-mm Totem
Specification

Sound absorption will be supplemented by Abso acoustic Totems by Texaa on the ground

Composition

  • Removable cover made of Aeria Maille Ronde (330 g/m²) sound-transparent fabric that is run-resistant, soil-resistant and machine washable
  • Grey AP cellular foam
  • a brushed stainless steel tray or a white powder-coated steel tray.



TECHNICAL SPECIFICATIONS

Reaction to fire classification

  • European classification :
    • B-s1, d0 for the Aeria fabric cover
    • C-s2, d0 for the sound absorber
  • United States – ASTM
    • Class A

Acoustic performance

Equivalent absorption area A(m²) at mid-range frequencies: 3.22 m²

Environmental characteristics

Very low emissions of VOC and formaldehyde (A+)
Slight impact on climate change: 16.7 kg CO2 eq /m²

Dimensions

Totem: 2000 x 380 x 380 mm

Colours

A choice of 30 colours in the Aeria Maille Ronde range. Special colours by request.

Free-standing
How can we help? F.A.Q.

How can I get a quote?

By contacting the Texaa business representative of your region by telephone or e-mail and leaving your contact details and what you need. We will send you a quote promptly.

How can I order Texaa products?

Our products are manufactured in our workshop and made available to order. Just contact the Texaa business representative of your region. If you already have a quote, you can also contact the person handling your order: the name is at the top left of your quote.

How do I get my products installed?

Joiners and upholsterers are the best skilled to install our products easily. We work regularly with some professionals, who we can recommend. If you have a tradesperson, who you trust, we can support him/her. You can find our installation instructions and tips here.

Got a technical question?

All our technical data sheets are here. Your regional Texaa business representative can also help; please feel free to contact him/her.

Can I have an appointment?

Our business representatives travel every day to installation sites and to see our customers. Please feel free to contact them and suggest the best dates and times for you, preferably by e-mail.

Lead times

Our products are manufactured to order. Our standard manufacturing time is 3 weeks for most of our products. Non-standard products take from 5 weeks. We also perform miracles on a regular basis! Please feel free to contact us.

Deliveries

For the UK all orders worth £2,399 and more are delivered for free throughout UK. For the US please contact us.
We can also send our products anywhere else.

Who should I call?

To get a quote, a delivery time or technical information, we recommend you call your regional Texaa business representative, who you can find here.

Order tracking

If you need information about your order, please contact the person in charge of handling it: the name is at the top left of your quote.
