Stereo acoustic panels

Stereo acoustic panels

Stereo panels are designed to be positioned in volumes. They can be vertical, horizontal, suspended or installed, single or in clusters. They can be part of the architecture of all types of space to address sound reverberation overall or area by area.

Pioneered by Texaa, this technique of addressing acoustics in reverberating spaces with objects has gradually become an architectural standard.

run-resistant
water repellent and dust-proof
fire-resistant
10-year guarantee

For a 1,199 x 1,199 x 55 mm
Equivalent absorption area A(m2)
Spacing: 2,000 mm

Their metal frames and the way in which Stereo panels are made, ensure strict geometrical shapes that suit your design perfectly.

Stereo panels suspended from the ceiling horizontally and in baffles.

Mounted on supports on the ceiling and walls, Stereo panels of different colours can discretely add variety to a space.

With their high quality finish, rich colour range, simplicity of implementation and many combinations, Stereo panels offer designers a very wide range of possibilities.

Stereo panels can be used to visually separate and differentiate the acoustics of various sub-areas within the same volume.

The feet of Stereo panels are available in either brushed stainless steel or lacquered white steel

By analysing the special needs of a project and being able to make to measure in its workshop, Texaa can develop, supply and guarantee fully bespoke solutions.

Stereo panels suspended on cables passing through them, enabling dimensions to be adapted to the markings in the concrete wall.

Stereo panels fitted on sliding runners to enable access to lighting and sprinkler systems.

Composition and installation

Every panel is made with a rust-proof steel frame, sound-absorbing wadding and a microporous cloth, wrapped in a removeable, machine-washable cover made of our Aeria sound-transparent fabric.

The steel frame, manual fitting of the cover and Aeria’s capability to fit any shape tightly make it possible to tailor geometrical forms with precision to the requirements. Depending on use, the cover protects one or both sides of the panel.

Panels can be easily installed with magnets or suspended. The delivered product is light and simple to use. The panels are hung on cables, whose length is easily adjusted, or fixed with a system of magnets.

Stereo panels are modular and their cover can be removed, which prolongs their useful life. Covers can be replaced or the panels fitted with new fixing systems to be used in different arrangements.

Characteristics

Composition

  • Metal frame made of rust-proof steel
  • White AF1 felt
  • Grey or black microporous cloth cladding
  • Removable cover made of sound-transparent Aeria fabric

Acoustic performance

Equivalent absorption area A(m2) at mid-range frequencies

  • Stereo suspended panel 1,199 x 1,199 x 55: 2 m2

European reaction to fire classification

Complete product: B-s2, d0

Durability of the aeria fabric cover

  • Run-resistant
  • 330 g/m² (opaque panel)
  • Protection against soiling:
    • Hydro/Oleophobic ≥ 5 (AATCC118 and AATCC193)
    • Electrostatic properties 7 x 1010 Ω (EN 1149-1)

Colours

Select from the 30 colours in the Maille Ronde (MR) palette. Special colours available on request.

Cleaning

Vacuum cleaning, may be taken apart and refitted, removable covers, machine washable.

Environmental characteristics

  • Stereo panels meet the requirements specified in the HQE, LEED and BREEAM (4 points) reference documents and methods, based on:
    • their acoustic contribution
    • the provision of certified EPDs (EN 15804)
    • their very low emissions of VOC and formaldehyde
  • All Texaa products qualify for French “A+” health labelling and are classed as “conforming” after assessment using the German AgBB protocol

Available options

  • Recesses for integrated light fittings, loudspeakers, etc.

  • Variable dimensions: widths from 300 to 1,200 mm and lengths from 600 to 2,400 mm. Please contact us for larger sizes.

Special solutions

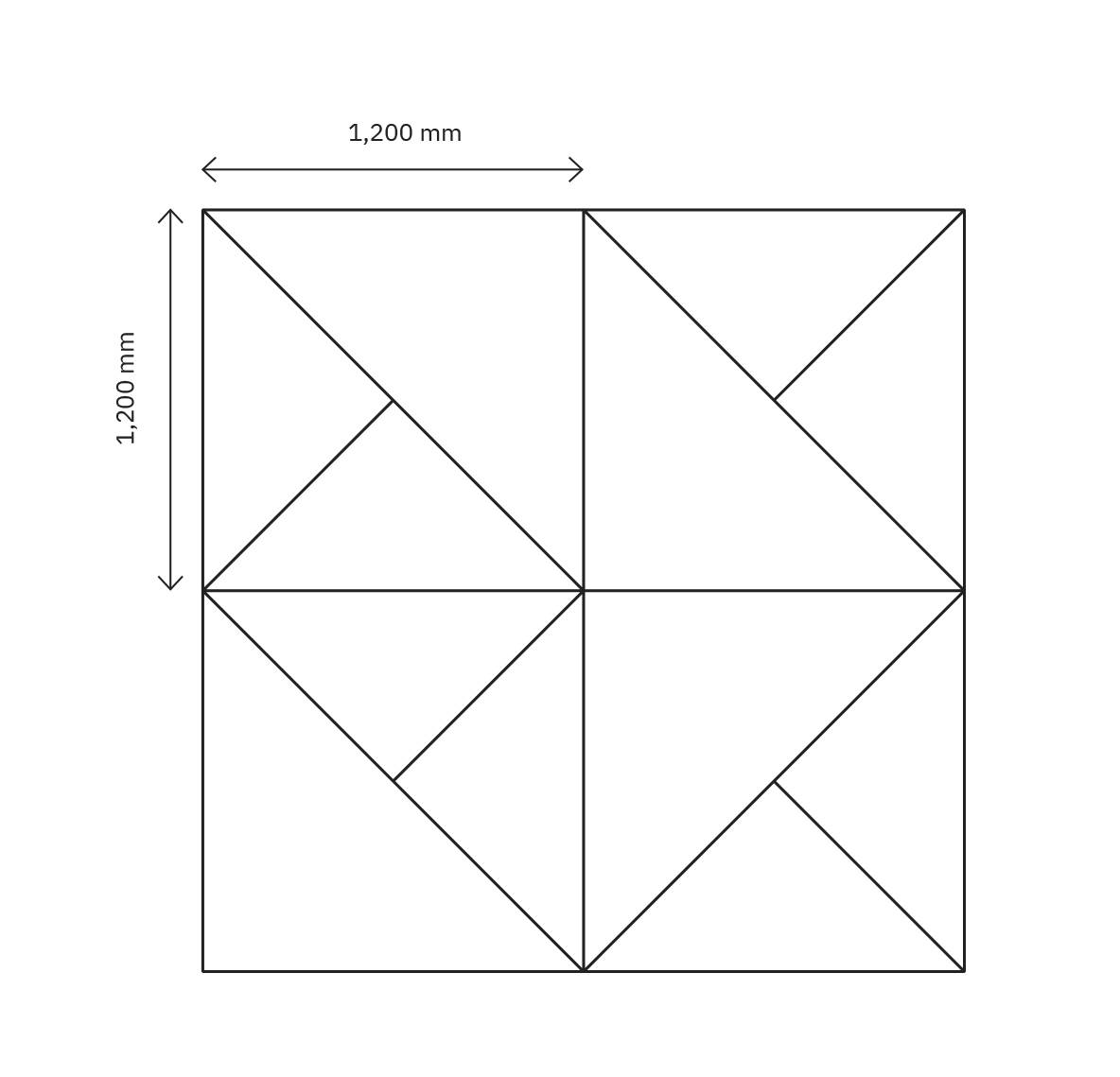

  • Specific configurations (overlaid, canopies, etc.).

  • Screw-fitted baffles

Garantee 10 years

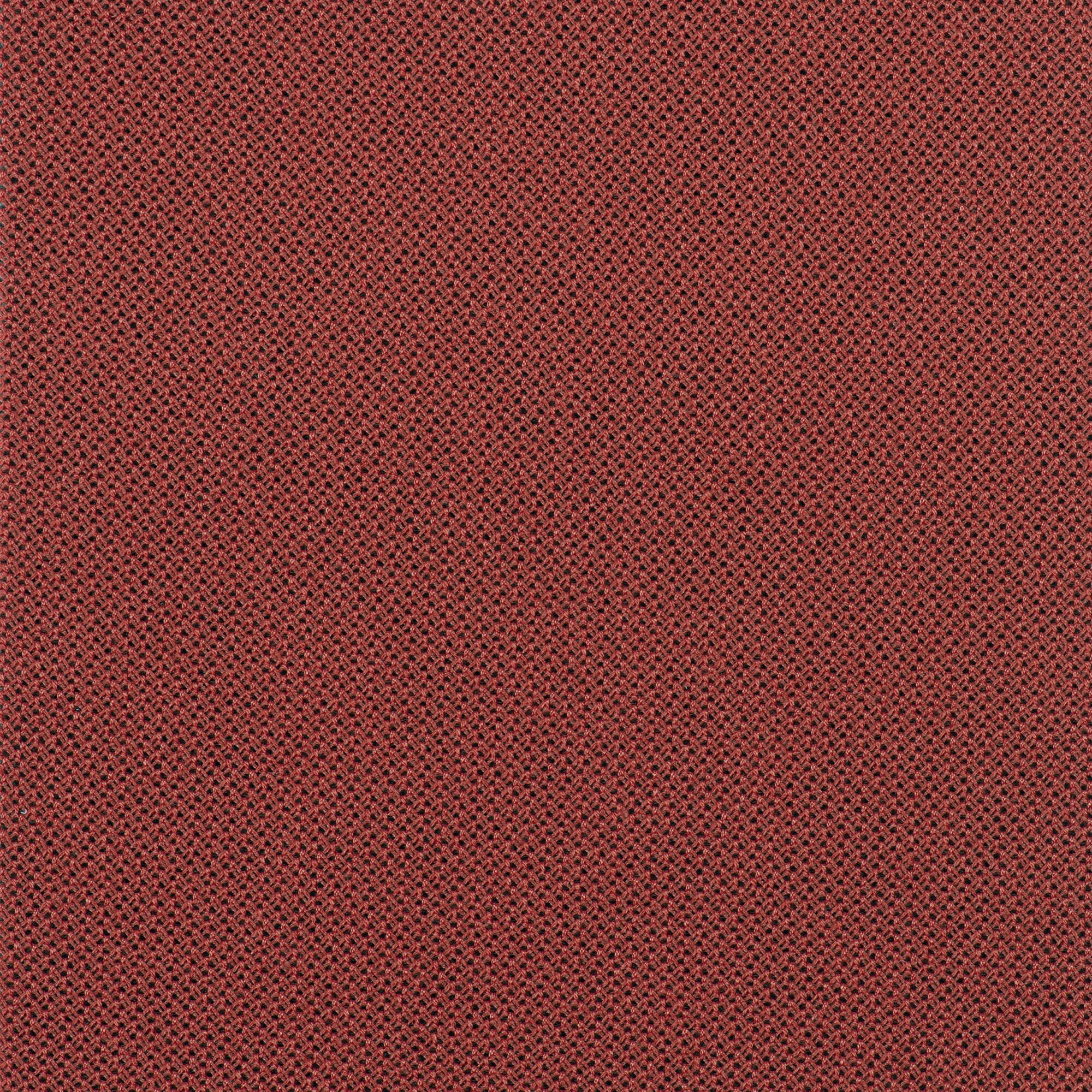

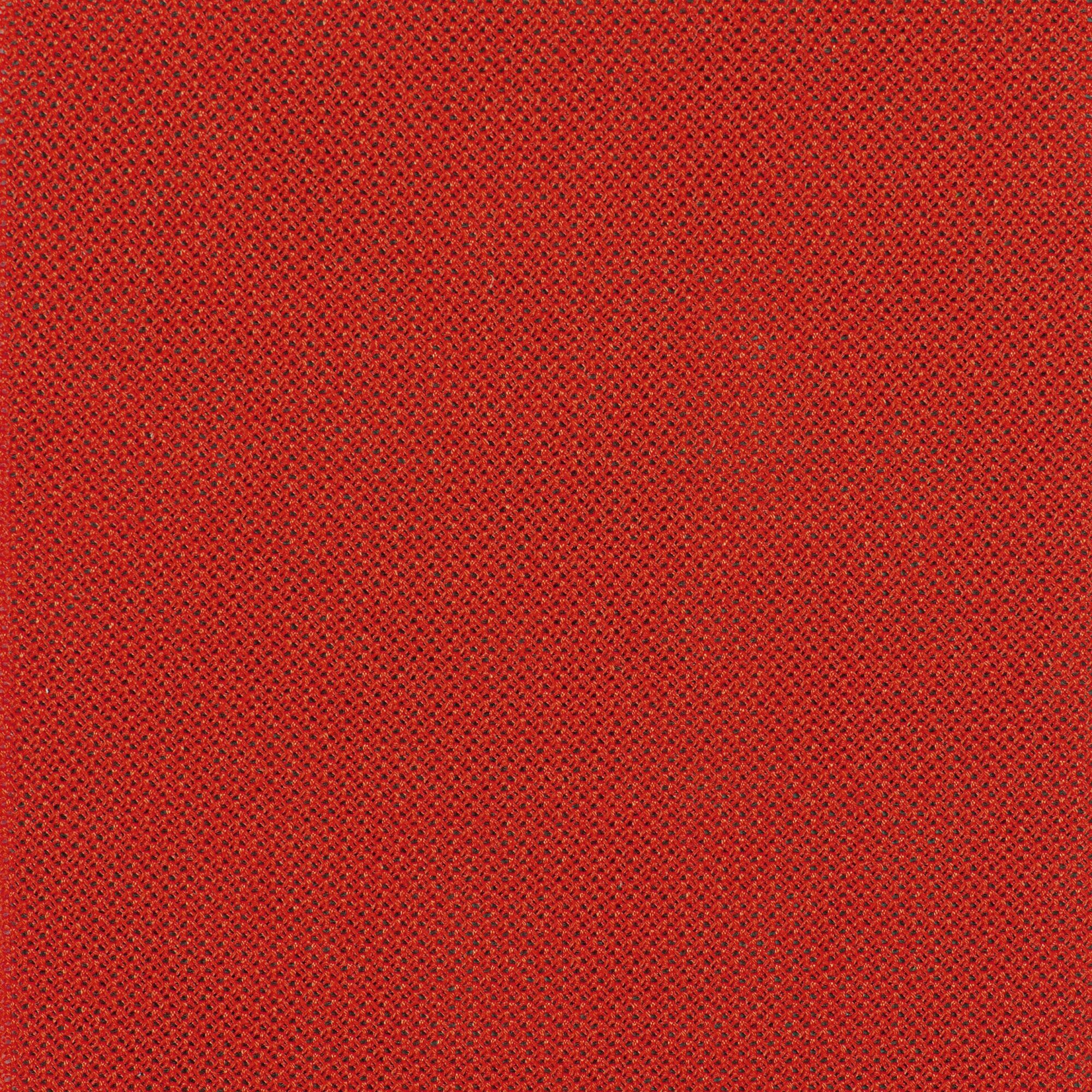

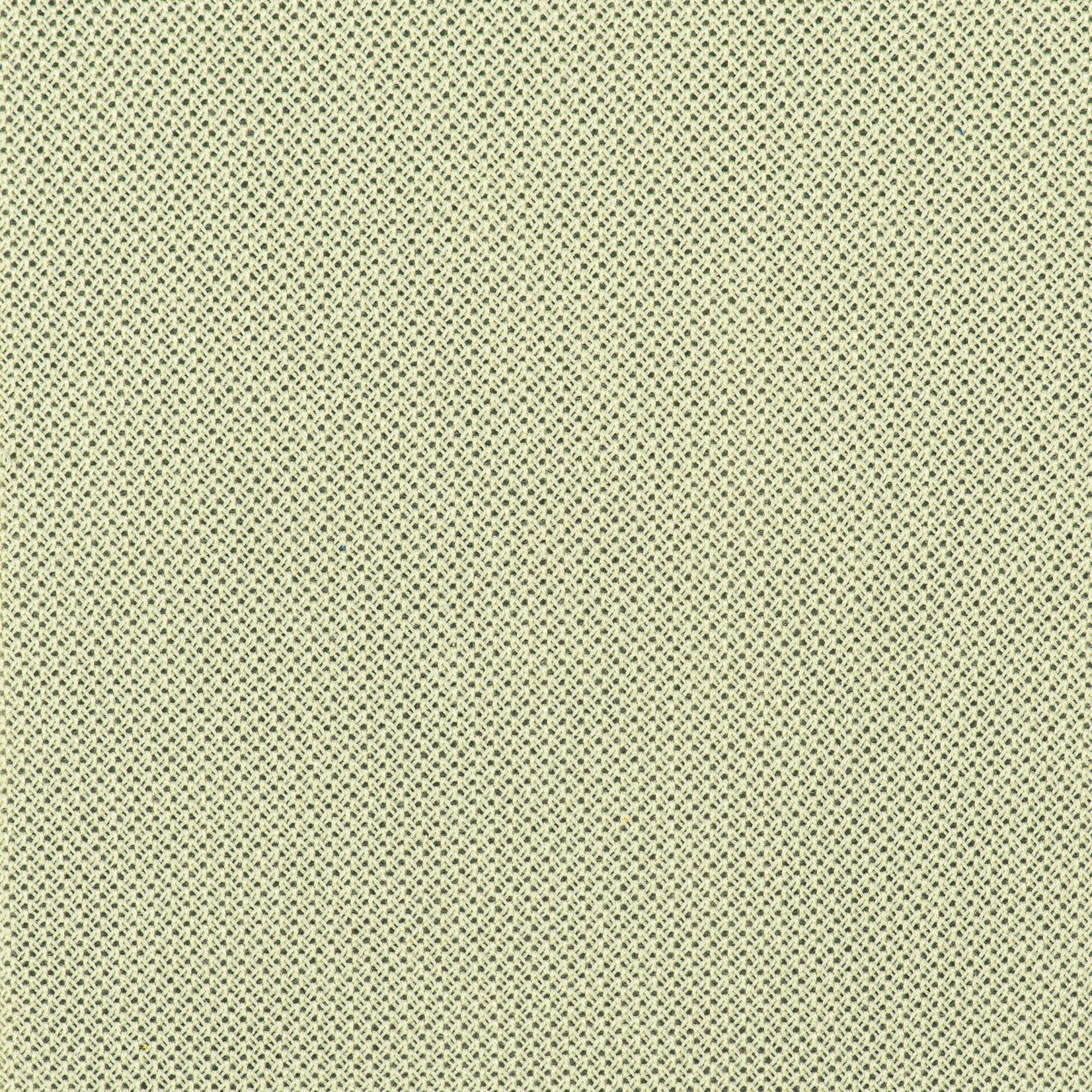

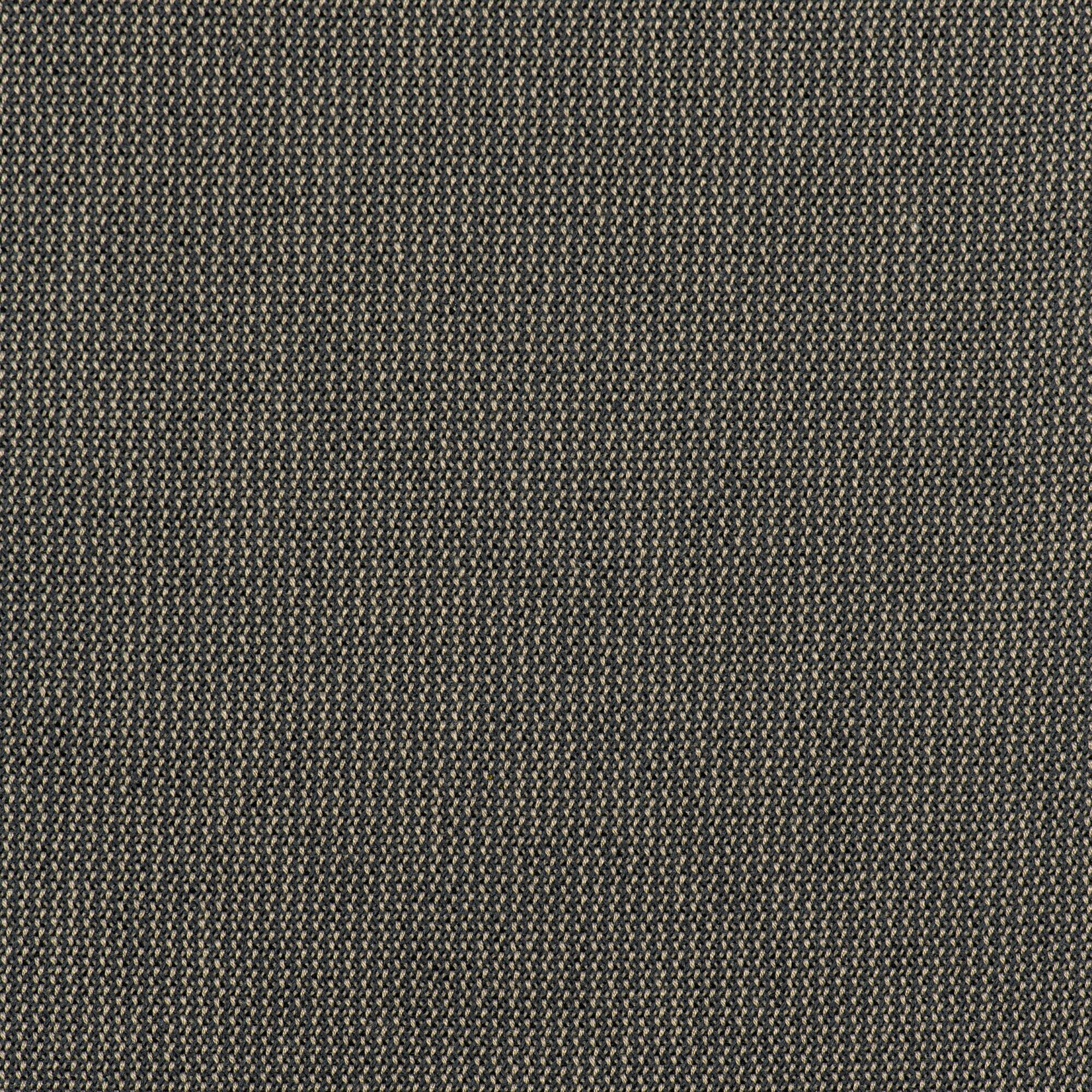

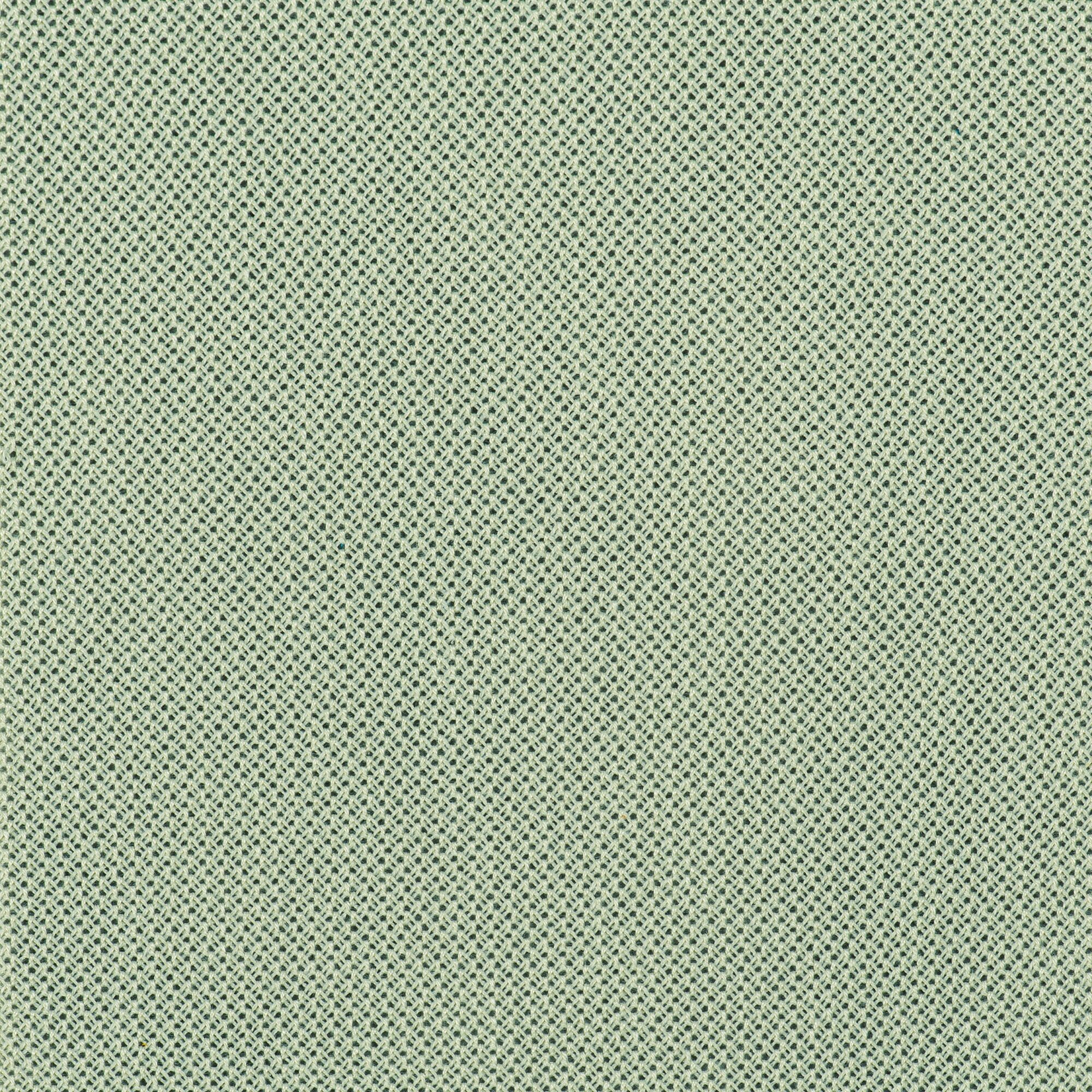

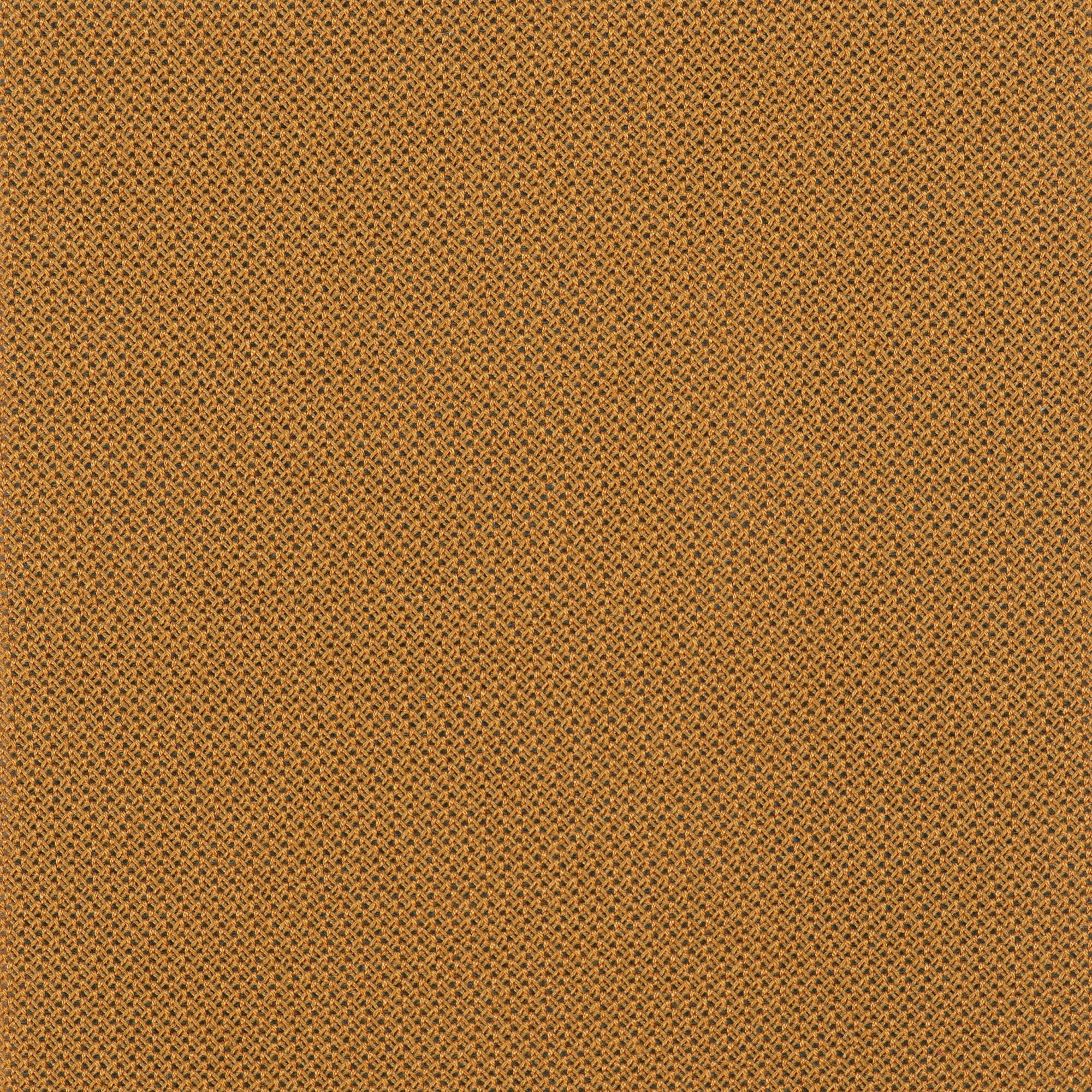

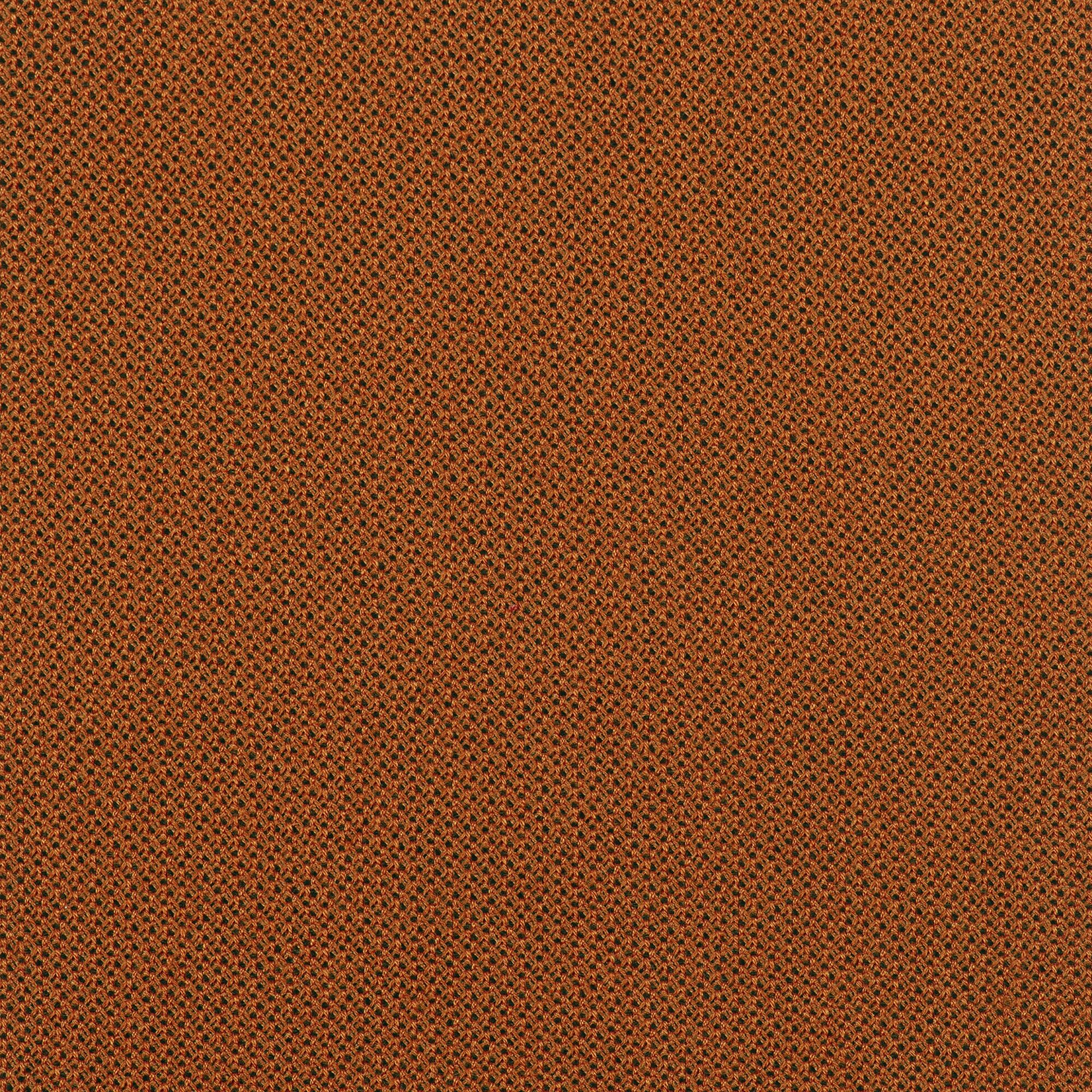

Colours available

Select from the 30 colours in the Maille Ronde (MR) palette. Special colours available on request.

Nacre
MR640
Granit
MR980
Graphite
MR520
Gris pierre
MR350
Quartz
MR300
Ciment
MR700
Silex
MR950
Taupe
MR680
Beige
MR930
Ivoire
MR940
Fougère
MR650
Océan
MR340
Bleu étang
MR360
Bleu menthe
MR370
Rouge
MR470
Brique
MR620
Rose rubis
MR320
Vieux rose
MR330
Craie
MR630
Chiné naturel
MR130
Chiné brun
MR120
Chiné noir
MR150
Chiné graphique
MR140
Bleu nocturne
MR310
Lichen
MR660
Vert cactus
MR550
Prairie
MR480
Vert beige
MR670
Moutarde
MR580
Cumin
MR920
Specify and install

individual suspended Stereo acoustic panels

Specification

Sound absorption to be achieved usingindividual suspended Stereo acoustic panels by Texaa®

Composition

  • Metal frame made of rust-proof steel
  • Sound-absorbing AF1 felt
  • Grey or black microporous cloth covering
  • Removable cover made of Aeria Maille Ronde (330 g/m²) sound-transparent fabric that is run-resistant, soil-resistant and machine washable

TECHNICAL SPECIFICATION

European Reaction to Fire rating for the complete product

B-s2, d0

Acoustic performance

Suspended 1,199 x 1,199 x 55-mm Stereo panel:
Equivalent absorption area A(m²) at mid-range frequencies: 2 m²

Environmental characteristics

Certified EPD (EN 15804). Very low emissions of VOC and formaldehyde (A+)

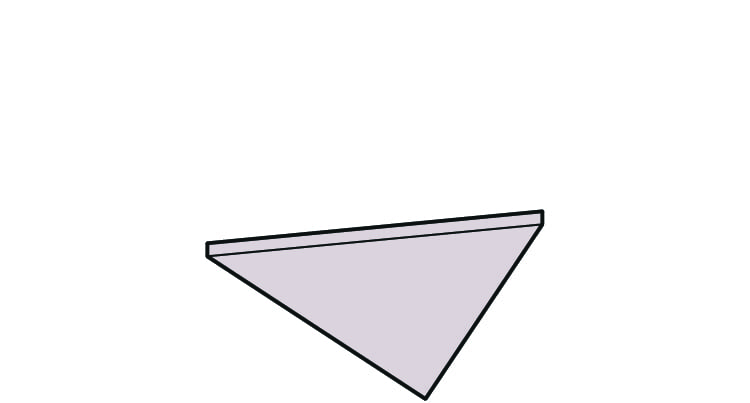

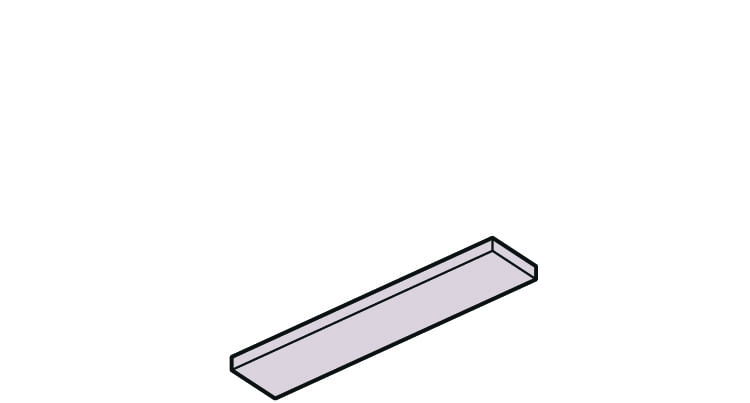

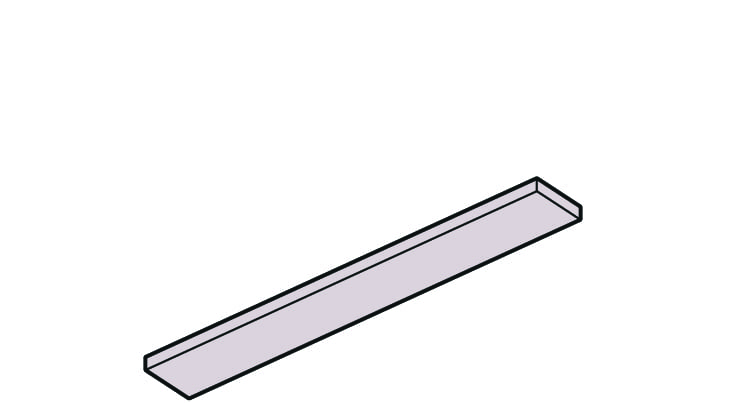

Dimensions

A choice of sizes are available in the Stereo range

Colours

A choice of 30 colours in the Aeria Maille Ronde range. Special colours by request.



FITTING

Suspended from the ceiling

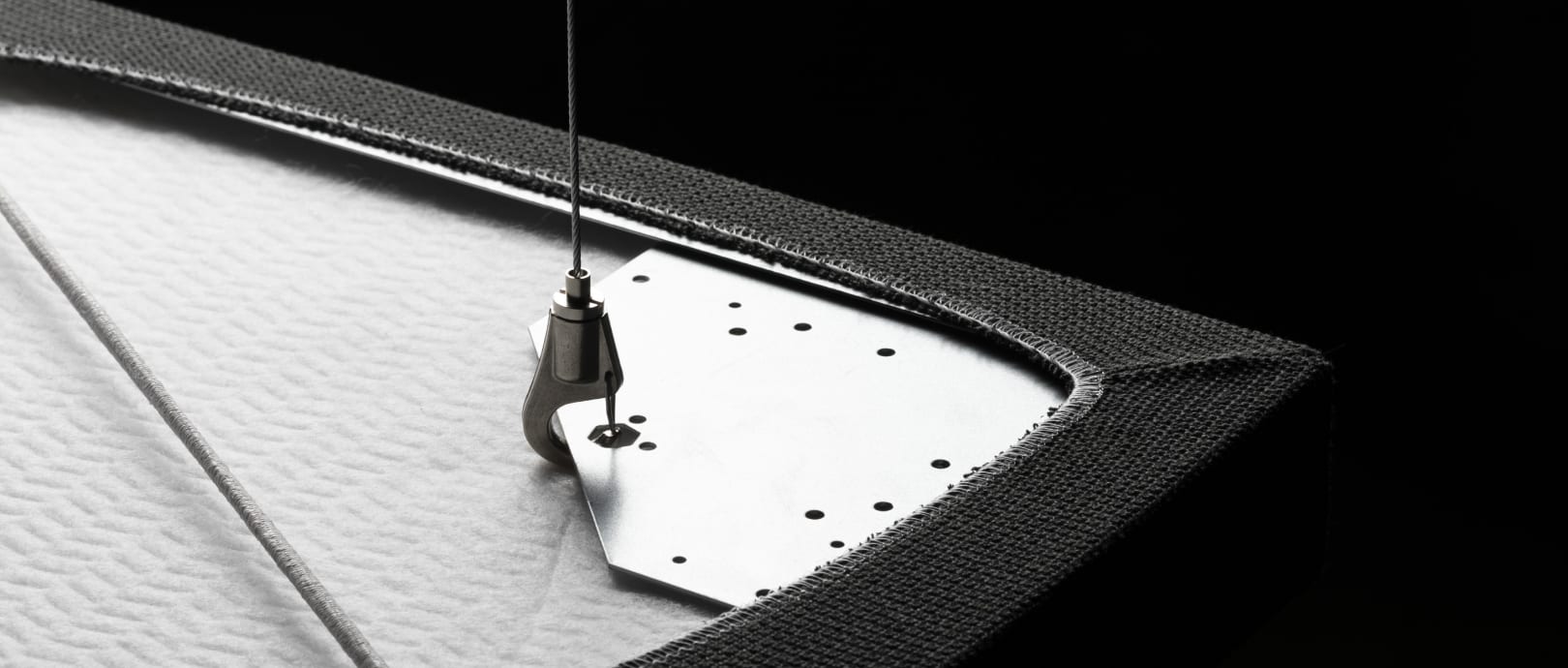

The Stereo panel is suspended from the ceiling on four vertical galvanised steel cables (two or three when suspended in baffles), 1 mm in diameter and 1,000 mm long, fitted with a small cylindrical cover and an adjustable eye hook with a latch.

Suspended singly from vertical cables
Suspended from the ceiling as a baffle using 2 or 3 vertical cables

Stereo acoustic panels mounted to a support surface

Specification

Sound absorption to be achieved usingStereo acoustic panels by Texaa mounted to a support surface

Composition

  • Metal frame made of rust-proof steel
  • Sound-absorbing AF1 felt
  • Grey or black microporous cloth covering
  • Removable cover made of Aeria Maille Ronde (330 g/m²) sound-transparent fabric that is run-resistant, soil-resistant and machine washable

TECHNICAL SPECIFICATION

European Reaction to Fire rating for the complete product

B-s2, d0

Acoustic performance

1,199 x 1,199 x 55-mm Stereo panel mounted to a support surface:
Equivalent absorption area A(m²) at mid-range frequencies: 1.78 m²

Environmental characteristics

Certified EPD (EN 15804). Very low emissions of VOC and formaldehyde (A+)

Dimensions

A choice of sizes are available in the Stereo range

Colours

A choice of 30 colours in the Aeria Maille Ronde range. Special colours by request.



FITTING

Mounted on a support surface with a system of magnets

Stereo panels are mounted on a support surface with magnets that adhere to four invisible metallic support plates that are screwed to the wall. On ceilings, four removable safety slings connect the panels to the support plates.

Mounted on a support surface using a magnetic system, singly on a wall
Mounted on a support surface using a magnetic system in groups on a wall
Mounted on a support surface using a magnetic system in groups on a wall
Mounted on a support surface using a magnetic system, singly on a ceiling
Mounted on a support surface using a magnetic system in groups on a ceiling

Stereo panels as a suspended partition

Specification

Sound absorption to be achieved using Stereo acoustic panels by Texaa® as a suspended partitions

Composition

  • Aluzinc® steel frame, treated to improve its resistance to corrosion
  • Sound-absorbing AF1 felt
  • Grey or black microporous cloth covering
  • Removable cover made of Aeria Maille Ronde (330 g/m²) sound-transparent fabric that is run-resistant, soil-resistant and machine washable

TECHNICAL SPECIFICATION

European Reaction to Fire rating for the complete product

B-s2, d0

Acoustic performance

1,199 x 1,199 x 55-mm Stereo panel as a partition:
Equivalent absorption area A(m²) at mid-range frequencies: 2.12 m²

Environmental characteristics

Certified EPD (EN 15804). Very low emissions of VOC and formaldehyde (A+)

Dimensions

A choice of sizes are available in the Stereo range

Colours

A choice of 30 colours in the Aeria Maille Ronde range. Special colours by request.



FITTING

Suspended between ceiling and floor on through cables

Each Stereo panel is suspended between ceiling and floor using 2 stainless steel cables running through the panels. The cables, 4 mm in diameter and 4,500 mm long, are each fitted with two threaded end-pieces (M6) one of which can be rotated to adjust the length of the cable during fitting.

Suspended in clusters using through cables

Each Stereo panel is suspended vertically from the ceiling by means of 2 cables made of galvanised steel (diameter 1 mm, length 3,000 mm) fitted with a small cylindrical cover and running through adjustable sliders. Several panels may be suspended from the same cables, one above the other. A finishing cover is fitted to the cable where it emerges from each panel. The cables are not secured to the floor.

Suspended between ceiling and floor on through cables
Suspended in clusters using through cables
Suspended in clusters using through cables

Stereo panels as a free-standing partition

Specification

Sound absorption to be achieved using Stereo acoustic panels by Texaa® as a free-standing partitions

Composition

  • Aluzinc® steel frame, treated to improve its resistance to corrosion
  • a 5-mm thick MDF core (730kg/m3) – grey AP honeycombed foam either side of the core
  • Grey or black microporous cloth covering
  • Removable cover made of Aeria Maille Ronde (330 g/m²) sound-transparent fabric that is run-resistant, soil-resistant and machine washable

TECHNICAL SPECIFICATION

European classification to fire classification :

B-s1, d0 for the Aeria fabric cover
C-s2, d0 for the sound absorber

Acoustic performance

1,199 x 1,199 x 55-mm Stereo panel as a partition:
Equivalent absorption area A(m²) at mid-range frequencies: 2.18 m²

Environmental characteristics

Very low emissions of VOC and formaldehyde (A+)

Dimensions

A choice of sizes are available in the Stereo range

Colours

A choice of 30 colours in the Aeria Maille Ronde range. Special colours by request.



FITTING

Standing on a table

Each Stereo panel stands on a table supported by two feet screwed into the underside of the panel, available in either brushed stainless steel or white powder-coated steel

Clipped to a table

Each Stereo panel is clipped to the edge of the table using clips screwed to the underside of the panel, made of brushed stainless steel or white powder-coated steel

Standing on the floor singly

Each Stereo panel stands on the ground on two feet screwed into the underside of the panel

Standing on the floor in groups

Each Stereo panel stands on the floor held between two supports, made from either brushed stainless steel or white powder-coated steel

Standing on a table
Clipped to a table
Standing on the floor singly
Standing on the floor in groups

special Stereo acoustic panels

Specification

Sound absorption to be achieved using special Stereo acoustic panels by Texaa®

Composition

  • Metal frame made of rust-proof steel
  • Sound-absorbing AF1 felt
  • Grey or black microporous cloth covering
  • Removable cover made of Aeria Maille Ronde (330 g/m²) sound-transparent fabric that is run-resistant, soil-resistant and machine washable

TECHNICAL SPECIFICATION

European Reaction to Fire rating for the complete product

B-s2, d0

Acoustic performance

Suspended 1,199 x 1,199 x 55-mm Stereo panel:
Equivalent absorption area A(m²) at mid-range frequencies: 2 m²

Environmental characteristics

Certified EPD (EN 15804). Very low emissions of VOC and formaldehyde (A+)

Dimensions

A choice of sizes are available in the special Stereo range

Colours

A choice of 30 colours in the Aeria Maille Ronde range. Special colours by request.



FITTING

See technical data sheet.

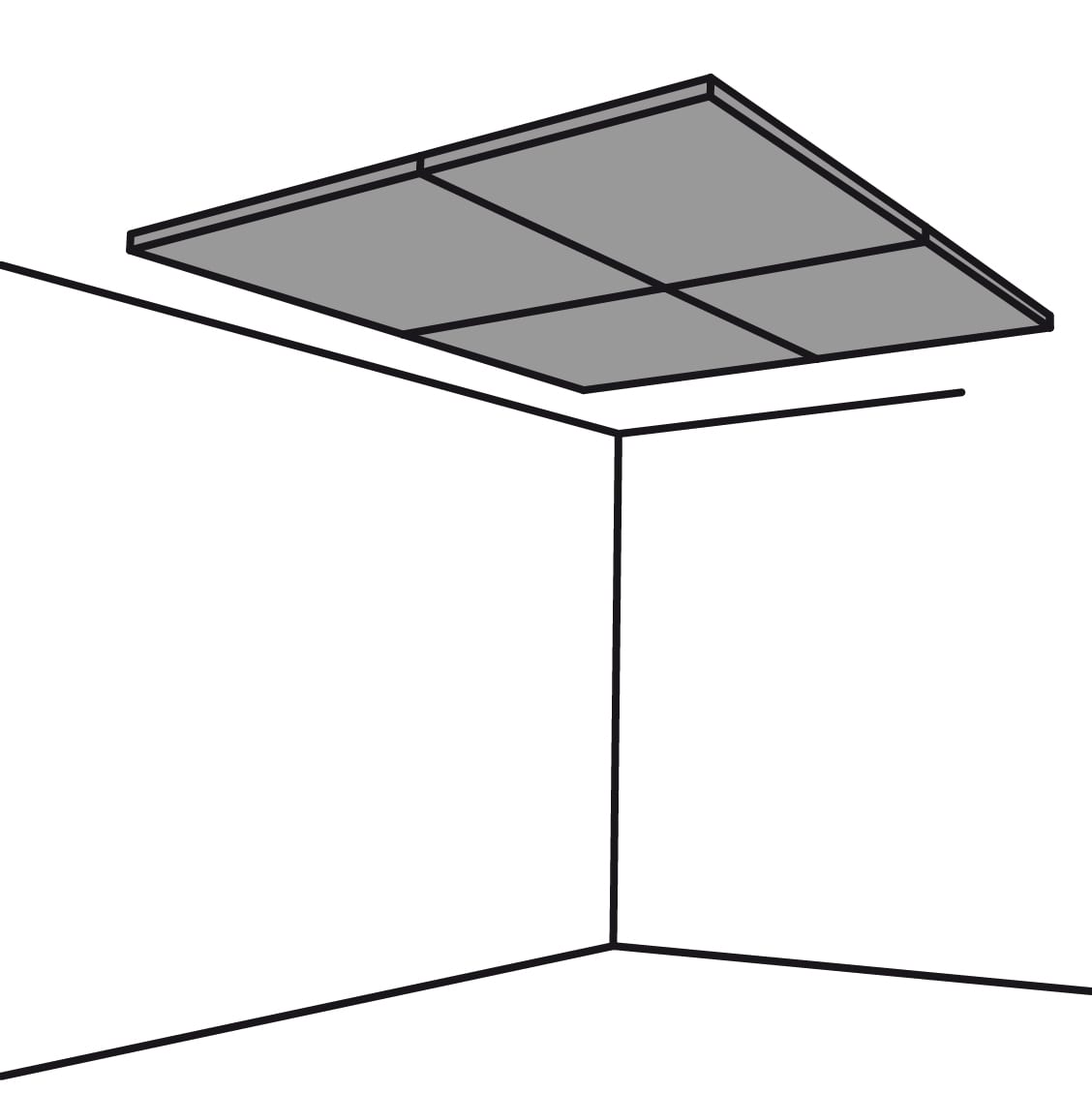

Suspended under horizontal cables
Suspended overlapping from vertical cables
Suspended on vertical cables against a wall
Mounted on vertical metal surfaces with magnets
As a screw-mounted baffle

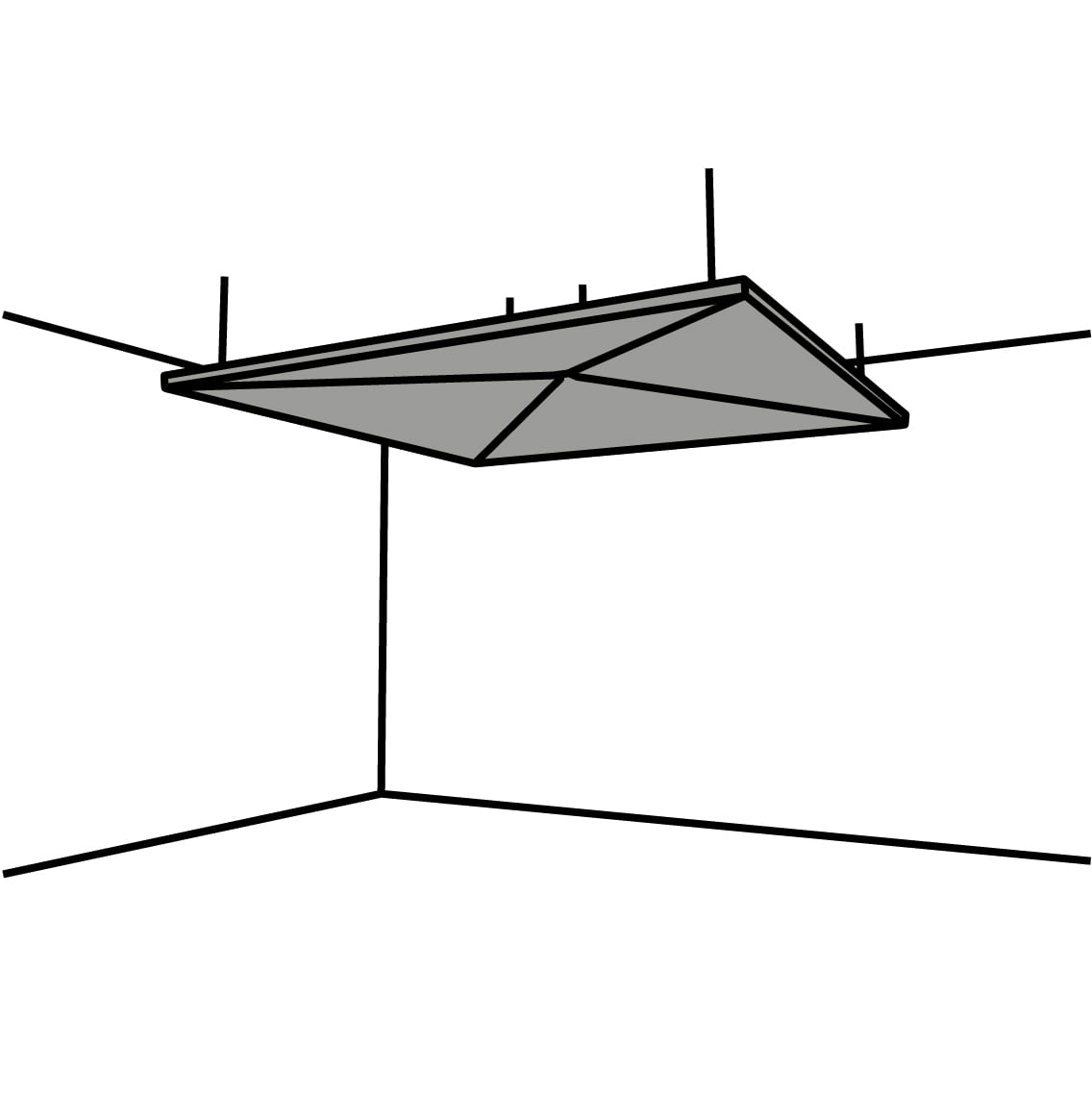

Suspended on vertical cables as a canopy
