Velio Acoustic Blinds

Velio Acoustic Blinds

Texaa acoustic blinds are the fruit of several innovations, and are quite unique in how they combine light occluding, thermal and acoustic qualities. Hung in front of a glazed surface, they absorb resonance, filter light and improve people’s comfort.

run-resistant
water repellent and dust-proof
fire-resistant
10-year guarantee

Performance of vertical slatted blinds positioned 100 mm from the vertical surface.

Hung in front of a glazed surface, the sound-absorbing acoustic curtains soften the light and acoustic ambience of the room.

Used to surround sub-areas, although they have no insulating effect, Texaa blinds enclose quiet areas that stimulate people to listen, for example in a media library or a story-telling space.

Texaa acoustic blinds are made with 3-mm-thick black felt, protected on both sides by our sound-transparent Aeria fabric. This unique product has acoustic, thermal and light occluding properties.

Composition and installation

Texaa Acoustic Blinds are made of 3-mm thick black felt, protected on both sides by our Aeria sound-transparent fabric. This unique product is an effective barrier for light, heat and sound.

A hanger plate is concealed in a hem at the top of each slat without any weights.

The new format of this hanger plate, an exclusive Texaa patent, locates it as close as possible to the hanging rail to cut out as much light as possible.

The blind slats are simply clipped to the runners in the rail.

Colours available

Select from the 30 colours in the Maille Ronde (MR) palette. Special colours available on request.

Vieux rose
MR330
Rose rubis
MR320
Brique
MR620
Rouge
MR470
Bleu menthe
MR370
Bleu étang
MR360
Océan
MR340
Bleu nocturne
MR310
Lichen
MR660
Vert cactus
MR550
Prairie
MR480
Fougère
MR650
Vert beige
MR670
Cumin
MR920
Moutarde
MR580
Ivoire
MR940
Beige
MR930
Taupe
MR680
Nacre
MR640
Silex
MR950
Ciment
MR700
Quartz
MR300
Gris pierre
MR350
Granit
MR980
Graphite
MR520
Craie
MR630
Chiné naturel
MR130
Chiné brun
MR120
Chiné noir
MR150
Chiné graphique
MR140
Specify and install
Specification

The acoustic blind slats comprise:

  • Aeria run-resistant antistatic and dirt-repellent Aeria fabric on both sides
  • A 3-mm thick layer of black felt
  • A black powder-coated hanger plate inserted in a hem

Characteristics of the slats

Width: 133 mm
Thickness: 5 mm
Length: up to 3 m (increase in length 72 hours after hanging: ≤ 0.5%)
Weight of each slat: ± 0,20 kg per linear metre

Durability of the fabric cover

Performance of Aeria 330 g/m2 run-resistant fabric
Protection against soiling:
Hydro/oleophobic ≥ 5 (AATCC118 and AATCC193)
Electrostatic properties 7.1010 Ω (EN 1149-1)

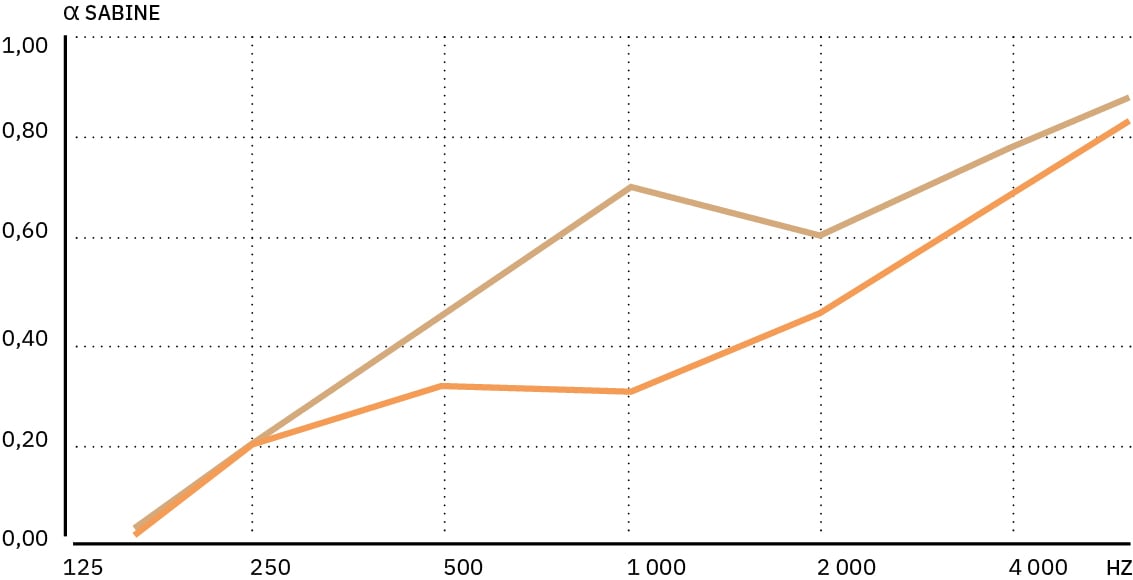

Acoustic performance

Sound absorption coefficient
Slats open at 90°: ɑw = 0.40 (H), NRC = 0,30, class D
Slats closed at 180°: ɑw = 0.45 (MH), NRC = 0,50, class D

Heat and light barrier

96% reduction in light levels
Transmission of the visible spectrum (wavelengths from 380-800 nm)
Absorption > 95% / Reflection 3% / Transmission < 2%
24% thermal reflection
Transmission of the solar radiation spectrum (wavelengths from 280-2.500 nm)
Absorption > 74% / Reflection 24% / Transmission < 2%

European reaction to fire classification

Complete product: C-s2, d0

Environmental characteristics

  • The sound-absorbing felt wadding is made from 90% recycled materials
  • VOC and formaldehyde emissions (ISO 16000)
  • The blinds qualify for French “A+” health labelling and are classed as “conforming” after assessment using the German AgBB protocol
  • LEED / BREEAM: 2 points for
    • Very low VOC (Volatile Organic Compounds) and formaldehyde emissions.
    • Acoustic contribution
  • Proportion of recycled components: ≥ 37 %

Cleaning

Vacuum cleaning, may be removed and refitted

Guarantee

10 years

Colours

Select from the 30 colours in the palette. Special colours available on request.
(Except MR140 (Chiné graphique), MR150 (Chiné noir) and MR120 (Chiné brun))

Option

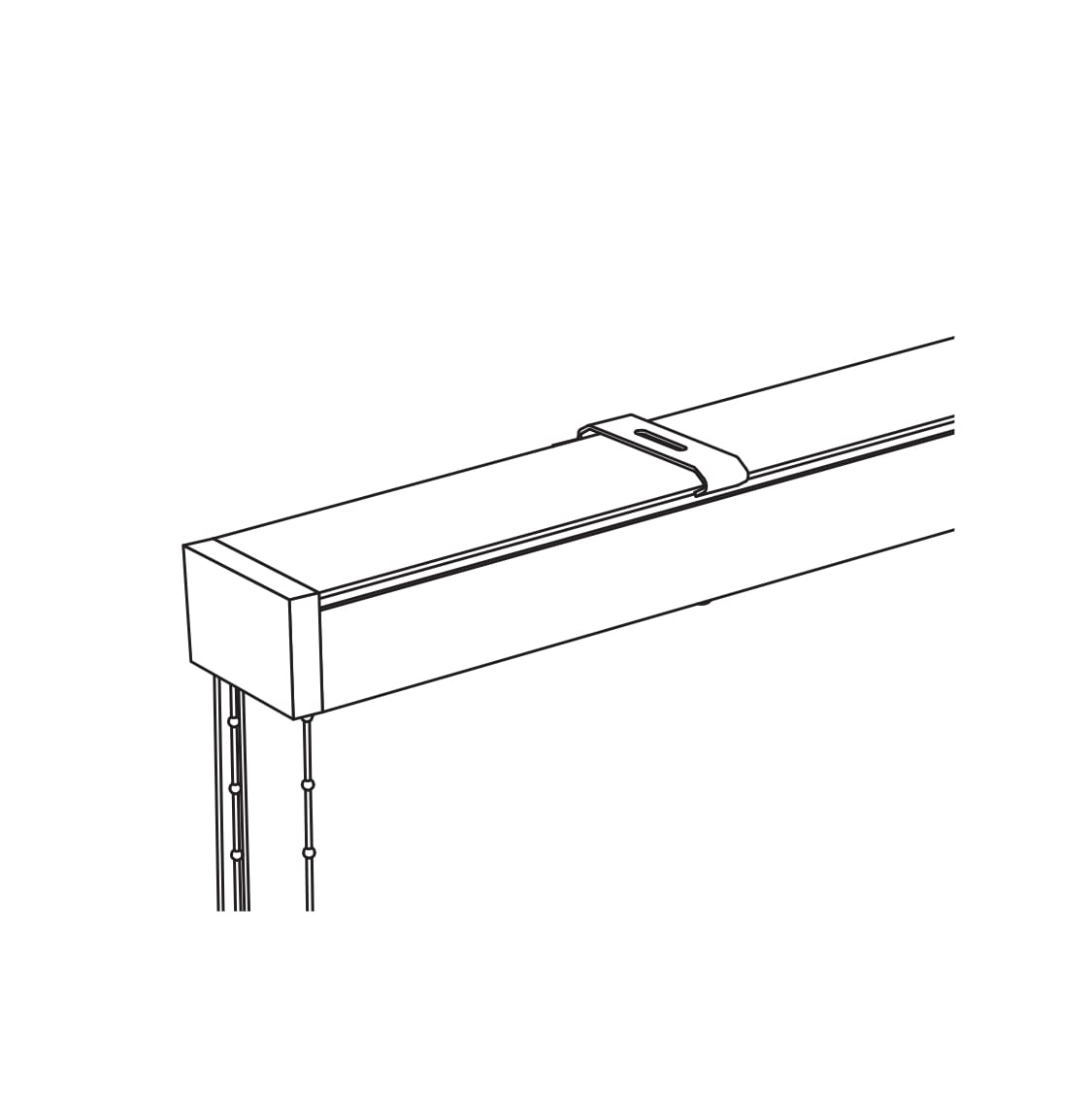

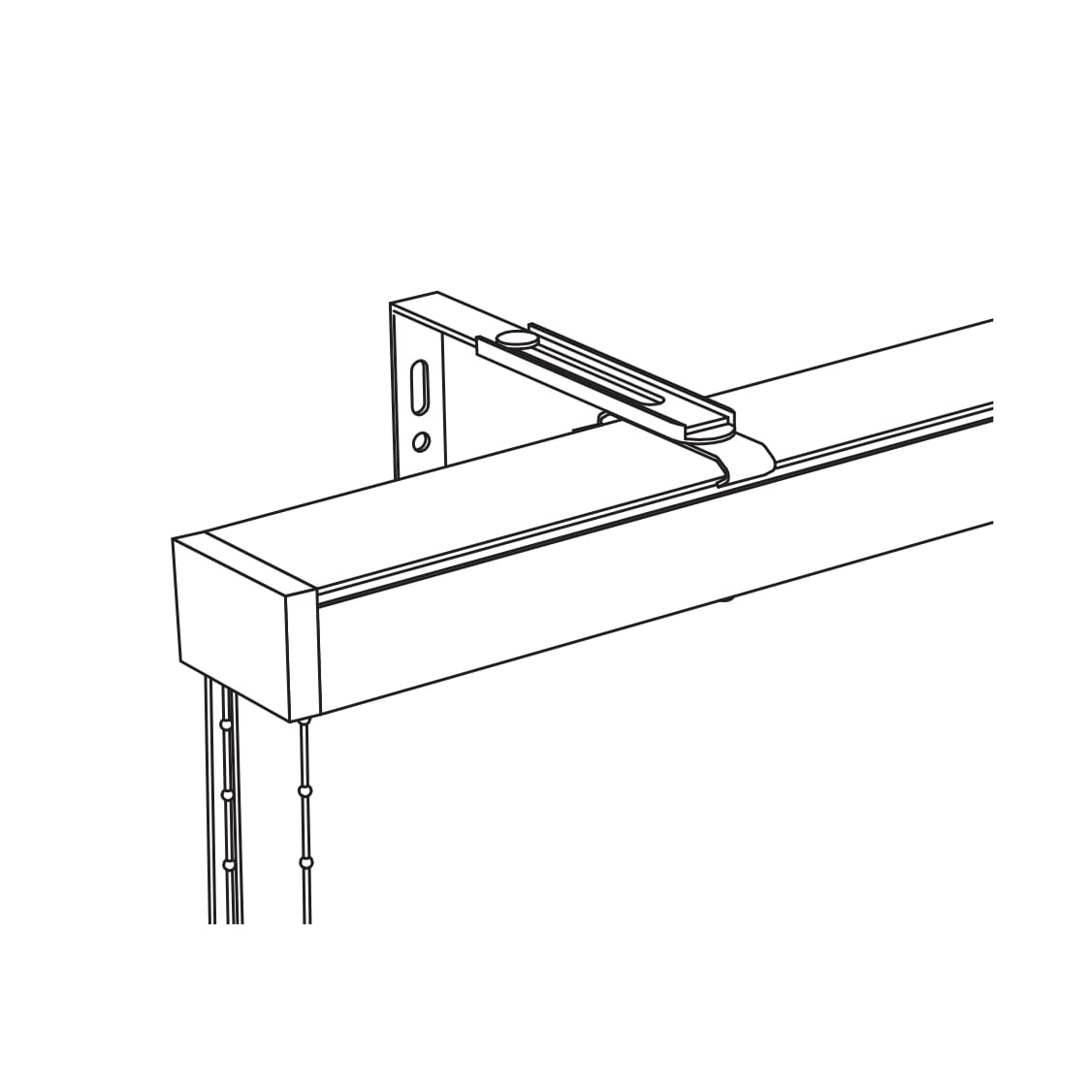

Headrail for blinds (2-year guarantee)

Hung from a rail
