Vibrasto acoustic cladding

Vibrasto is one of Texaa’s emblematic products. It is a flexible acoustic cladding that can be stretch-fitted to walls, ceilings or furniture.

Three thicknesses are available to provide the right level of performance for each project.

The quality of its assembly and its Aeria fabric cover make it robust and easy to clean.

Its flexibility and adaptability provide great scope for creativity.

run-resistant
water repellent and dust-proof
fire-resistant
10-year guarantee

Available in a 15-mm thickness, Vibrasto cladding can be a space-saving solution.

The installation system makes for perfect finishing around lighting, loudspeakers, ventilation, etc.

Vibrasto 15 and 30 can be applied to convex and concave surfaces.

To achieve maximum acoustic comfort, all the available surfaces of this meeting room with many glazed openings were clad with Vibrasto.

Vibrasto cladding covering 2,500 m2 (26,900 sq. ft) of ceiling

Stretch-fitted Aeria and Vibrasto to combine transparent and opaque effects, and form three-dimensional faces that come to life with light and sound systems.

The Grain de Riz (rice grain) knit pattern catches the light in such a way as to highlight the fabric appearance of Vibrasto.

Composition and installation

Vibrasto cladding uses our Aeria fabric as a facing, which is laminated to 3 mm-thick wadding to make it perfectly opaque and able to conceal the acoustic system behind it.

Positioned between U-section battens the sound-aborbent material is what makes Vibrasto cladding so acoustically effective: depending on the performance required and the space available, this can be thin felt or a rigid panel.

It is very easy to install the cladding with pencil-line joins using battens.

The Vibrasto installation system, using profiled battens, enables large-scale applications with a guarantee of achieving perfect finished results.

Characteristics

VIBRASTO 15

Composition

  • Tensioning battens
  • AF2 absorbent felt
  • Aeria sound-transparent fabric facing, laminated onto wadding

Acoustic performance

Absorption coefficient αw when fitted over concrete
αw = 0.35 (H), NRC = 0.40, class D

European reaction to fire classification

Complete product: B-s2, d0

Total thickness 15 mm

Concave/convex surfaces Yes



VIBRASTO 30

Composition

  • Tensioning battens
  • A single layer of 25-mm RI absorber panels
  • Aeria sound-transparent fabric facing, laminated onto wadding

Acoustic performance

Absorption coefficient αw when fitted over concrete
αw = 0.50 (MH), NRC = 0.70, class D

European reaction to fire classification

  • Facing : B-s1, d0
  • RI panel: A2-s1, d0

Total thickness 30 mm

Concave/convex surfaces Yes



VIBRASTO 55

Composition

  • Tensioning battens
  • Two layers of 25-mm RI absorber panels
  • Aeria sound-transparent fabric facing, laminated onto wadding

Acoustic performance

Absorption coefficient αw when fitted over concrete
αw = 0.95, NRC = 0.90, class A

European reaction to fire classification

  • Facing : B-s1, d0
  • RI panel (two layers): A2-s1, d0

Total thickness 55 mm

Concave/convex surfaces No

COMMON FEATURES

Environnemental characteristics

  • Tensioning battens made of 100% recycled materials
  • Vibrasto cladding meets the requirements specified in the HQE, LEED and BREEAM (4 points) reference documents and methods, based on:
    • their acoustic contribution
    • the provision of certified EPDs (EN 15804)
    • their very low emissions of VOC and formaldehyde
  • All Texaa products qualify for French “A+” health labelling and are classed as “conforming” after assessment using the German AgBB protocol

Durability of the aeria fabric cover

  • Run-resistant
  • 330 g/m²
  • Protection against soiling:
    • Hydro/Oleophobic ≥ 5 (AATCC118 and AATCC193)
    • Electrostatic properties 7 x 1010 Ω (EN 1149-1)

Colours

Select from the 30 colours in the Maille Ronde (MR) palette.
Special colours available on request.

Cleaning

Vacuum cleaning, may be taken apart and refitted

Available option

Embroidery

Special solutions

A “Grain de Riz” (rice grain pattern) knit for the Aeria fabric, 3 colours available.

Guarantee 10 years

Colours available

Select from the 30 colours in the Maille Ronde (MR) palette. Special colours available on request.

Nacre
MR640
Granit
MR980
Graphite
MR520
Gris pierre
MR350
Quartz
MR300
Ciment
MR700
Silex
MR950
Taupe
MR680
Beige
MR930
Ivoire
MR940
Fougère
MR650
Océan
MR340
Bleu étang
MR360
Bleu menthe
MR370
Rouge
MR470
Brique
MR620
Rose rubis
MR320
Vieux rose
MR330
Craie
MR630
Chiné naturel
MR130
Chiné brun
MR120
Chiné noir
MR150
Chiné graphique
MR140
Bleu nocturne
MR310
Lichen
MR660
Vert cactus
MR550
Prairie
MR480
Vert beige
MR670
Moutarde
MR580
Cumin
MR920
Specify and install
Specification

Walls [ceilings] to be fitted with Vibrasto 15 acoustic cladding by Texaa

 Composition

  • A highly fire-resistant facing consisting of an Aeria Maille Ronde (330 g/m²) sound-transparent fabric that is run-resistant, antistatic and soil-resistant, laminated onto wadding
  • AF2 sound-absorbing felt
  • Tensioning battens made of fully recycled material

TECHNICAL SPECIFICATIONS

European Reaction to Fire rating

Complete product: B-s2, d0

Acoustic performance

Absorption coefficient αw on concrete = 0.35 (H)

Environmental characteristics

Certified EPD (EN 15804). Very low emissions of VOC and formaldehyde (A+)

Dimensions

Width: 1,500 mm
Thickness: 15 mm

Colours

A choice of 30 colours in the Aeria Maille Ronde range. Special colours by request.



FITTING

Joins

Join-to-join distance: 1,500 mm.
The joins between adjacent lengths are produced as pencil-line joins. The edges of the fabric facing are inserted into U-section battens fitted between the two lengths. For thicker assemblies, the battens can be mounted on shims, sized to suit the dimensions of the sound-absorbing material.

Corners

Inside corners are produced as pencil-line joins. A Texaa-supplied standoff batten can be used to produce outside corners.

Edges

L-section battens are fitted around the edges of the covered surface (or around the surrounds of openings). Battens fitted along visible edges are delivered already clad with a matching fabric.

Electrical fittings

Electrical fittings (plug sockets, switches etc.) are installed to stand proud of the surface depending on the thickness of the sound-absorbing material

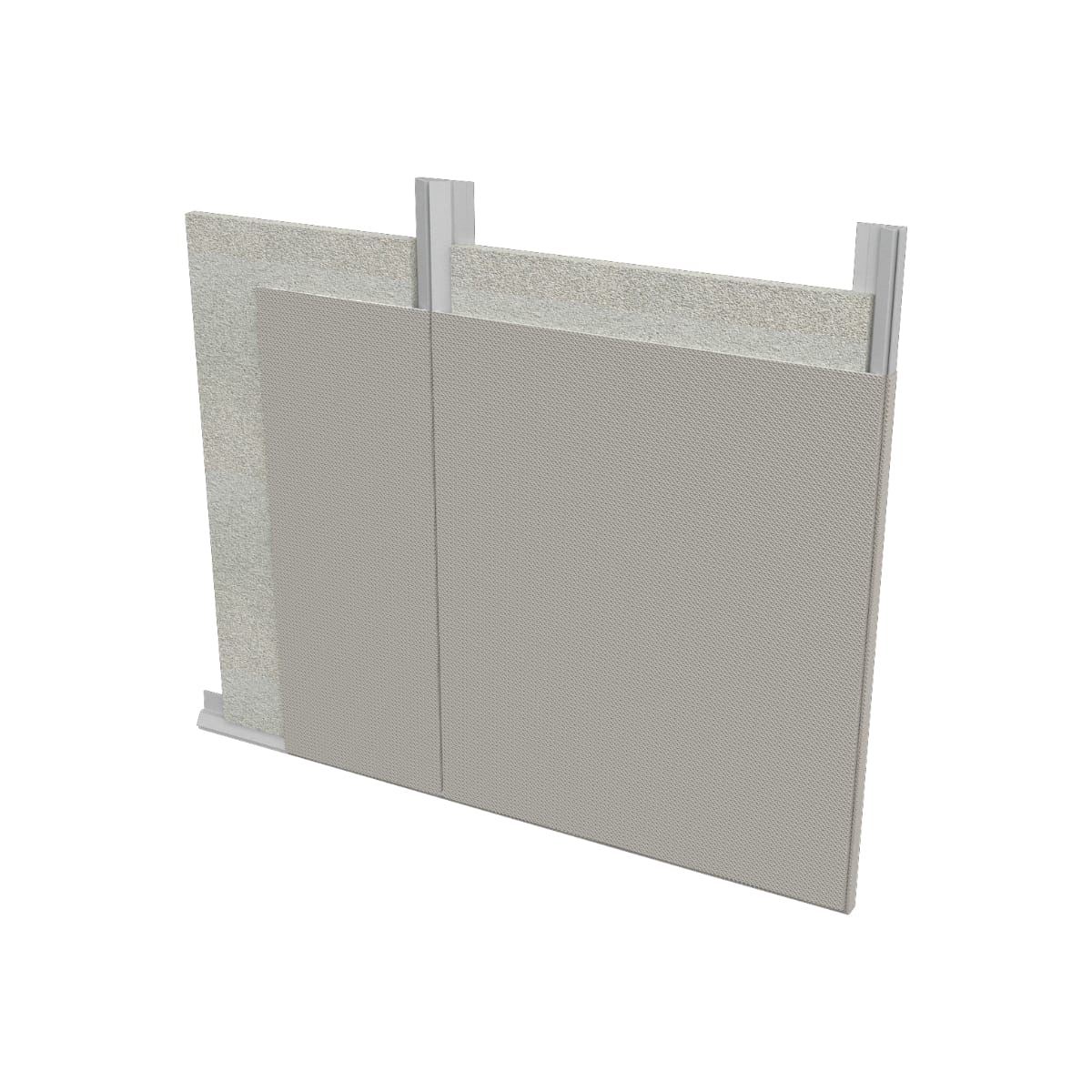

Vibrasto 15
Specification

Walls [ceilings] to be fitted with Vibrasto 30 acoustic cladding by Texaa

Composition

  • A highly fire-resistant facing consisting of an Aeria Maille Ronde (330 g/m²) sound-transparent fabric that is run-resistant, antistatic and soil-resistant, laminated onto wadding
  • RI sound-absorbing panels
  • Tensioning battens made of fully recycled material

TECHNICAL SPECIFICATION

European Reaction to Fire rating

Facing: B-s1, d0
RI panel: A2-s1, d0

Acoustic performance

Absorption coefficient αon concrete = 0.50 (MH)

Environmental characteristics

Certified EPD (EN 15804). Very low emissions of VOC and formaldehyde (A+)

Dimensions

Width: 1,500 mm
Thickness: 30 mm

Colours

A choice of 30 colours in the Aeria Maille Ronde range. Special colours by request.



FITTING

Joins

Join-to-join distance: 1,500 mm.
The joins between adjacent lengths are produced as pencil-line joins. The edges of the fabric facing are inserted into U-section battens fitted between the two lengths. For thicker assemblies, the battens can be mounted on shims, sized to suit the dimensions of the sound-absorbing material.

Corners

Inside corners are produced as pencil-line joins. A Texaa-supplied standoff batten can be used to produce outside corners.

Edges

L-section battens are fitted around the edges of the covered surface (or around the surrounds of openings). Battens fitted along visible edges are delivered already clad with a matching fabric.

Electrical fittings

Electrical fittings (plug sockets, switches etc.) are installed to stand proud of the surface depending on the thickness of the sound-absorbing material.

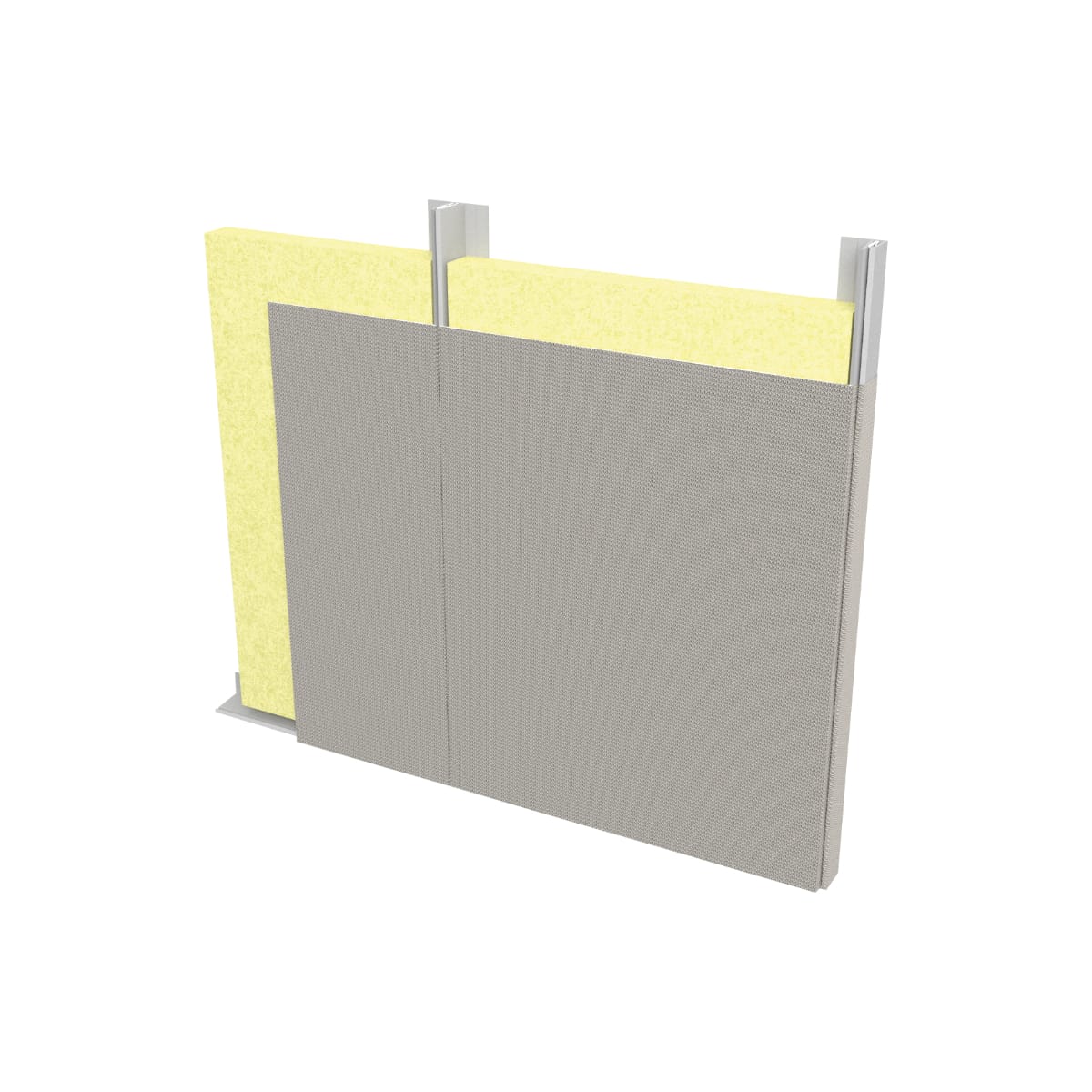

Vibrasto 30
Specification

Walls [ceilings] to be fitted with Vibrasto 55 acoustic cladding by Texaa

 Composition

  • A highly fire-resistant facing consisting of an Aeria Maille Ronde (330 g/m²) sound-transparent fabric that is run-resistant, antistatic and soil-resistant, laminated onto wadding
  • RI sound-absorbing panels
  • Tensioning battens made of fully recycled material

TECHNICAL SPECIFICATION

European Reaction to Fire rating

Facing: B-s1, d0
2 layers of IR panel : A2-s1, d0

Acoustic performance

Absorption coefficient αon concrete = 0.95

Environmental characteristics

Certified EPD (EN 15804). Very low emissions of VOC and formaldehyde (A+)

Dimensions

Width: 1,500 mm
Thickness: 55 mm

Colours

A choice of 30 colours in the Aeria Maille Ronde range. Special colours by request.



FITTING

Joins

Join-to-join distance: 1,500 mm.
The joins between adjacent lengths are produced as pencil-line joins. The edges of the fabric facing are inserted into U-section battens fitted between the two lengths. For thicker assemblies, the battens can be mounted on shims, sized to suit the dimensions of the sound-absorbing material.

Corners

Inside corners are produced as pencil-line joins. A Texaa-supplied standoff batten can be used to produce outside corners.

Edges

L-section battens are fitted around the edges of the covered surface (or around the surrounds of openings). Battens fitted along visible edges are delivered already clad with a matching fabric.

Electrical fittings

Electrical fittings (plug sockets, switches etc.) are installed to stand proud of the surface depending on the thickness of the sound-absorbing material.

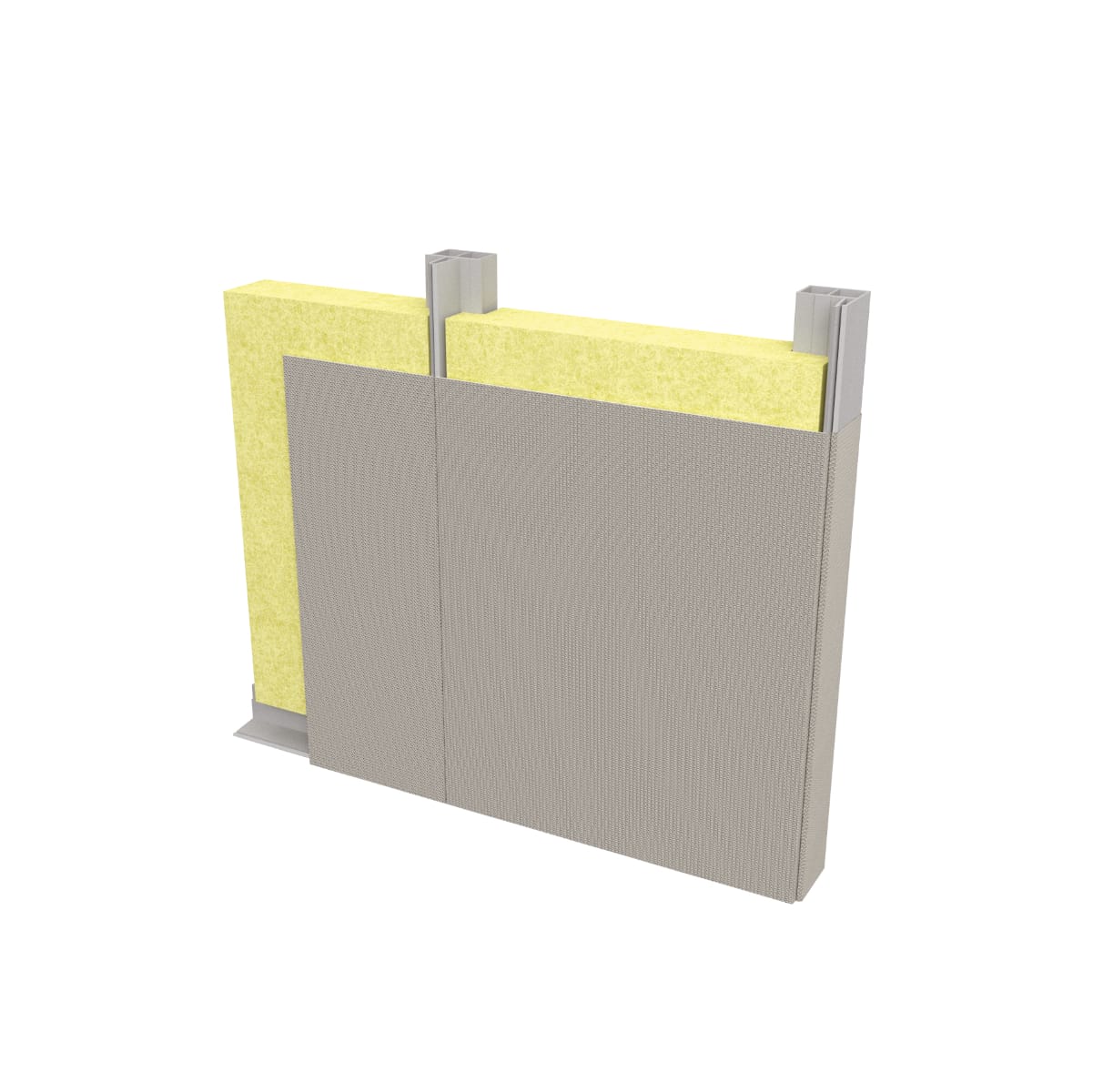

Vibrasto 55
